HL1-L-DC100V-D-F

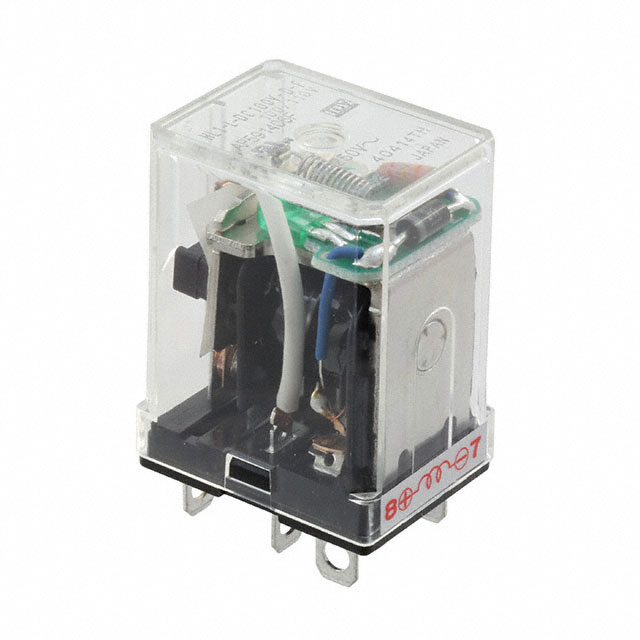

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HL1-L-DC100V-D-F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HL1-L-DC100V-D-F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HL1-L-DC100V-D-F |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE SPDT 15A 100V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 20 pcs | ||||
|---|---|---|---|---|---|
| $9.436 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HL1-L-DC100V-D-F | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPDT 15A 100V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3402 pcs | Data sheet | HL Relay Datasheet |
| Category | Relays | Turn On Voltage (Max) | 80 VDC |
| Turn Off Voltage (Min) | 10 VDC | Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
| Switching Voltage | 125VAC - Nom | Series | HL |
| Release Time | 25ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | 255-5102 HL1-L-DC100V-D-F-ND |
| Operating Temperature | -50°C ~ 70°C | Operate Time | 25ms |
| Mounting Type | Socketable | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Diode, LED Indicator |
| Detailed Description | General Purpose Relay SPDT (1 Form C) 100VDC Coil Socketable | Contact Rating (Current) | 15A |
| Contact Material | Silver Tin Oxide (AgSnO) | Contact Form | SPDT (1 Form C) |
| Coil Voltage | 100VDC | Coil Type | Non Latching |
| Coil Resistance | 10 kOhms | Coil Power | 1 W |
| Coil Current | 10.0mA |
