HL1-HTM-AC240V

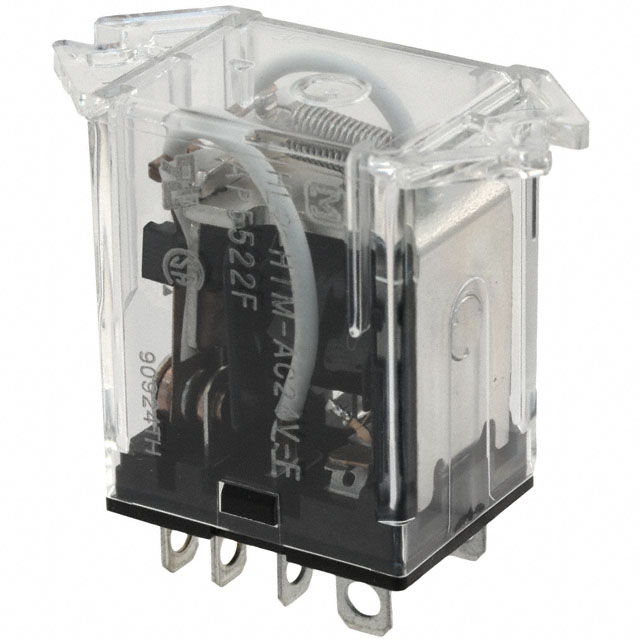

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HL1-HTM-AC240V with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HL1-HTM-AC240V with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HL1-HTM-AC240V |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE SPDT 15A 240V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HL1-HTM-AC240V | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPDT 15A 240V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5425 pcs | Data sheet | HL Series Datasheet |
| Category | Relays | Turn On Voltage (Max) | 192 VAC |
| Turn Off Voltage (Min) | 72 VAC | Termination Style | Quick Connect - 0.187" (4.7mm) |
| Switching Voltage | 125VAC - Nom | Series | HL |
| Release Time | 10ms | Relay Type | General Purpose |
| Packaging | Bulk | Operating Temperature | -50°C ~ 70°C |
| Operate Time | 10ms | Mounting Type | Chassis Mount |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Detailed Description | General Purpose Relay SPDT (1 Form C) 240VAC Coil Chassis Mount | Contact Rating (Current) | 15A |
| Contact Material | Silver Alloy | Contact Form | SPDT (1 Form C) |
| Coil Voltage | 240VAC | Coil Type | Non Latching |
| Coil Power | 1.2 VA | Coil Current | 5.0mA |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
