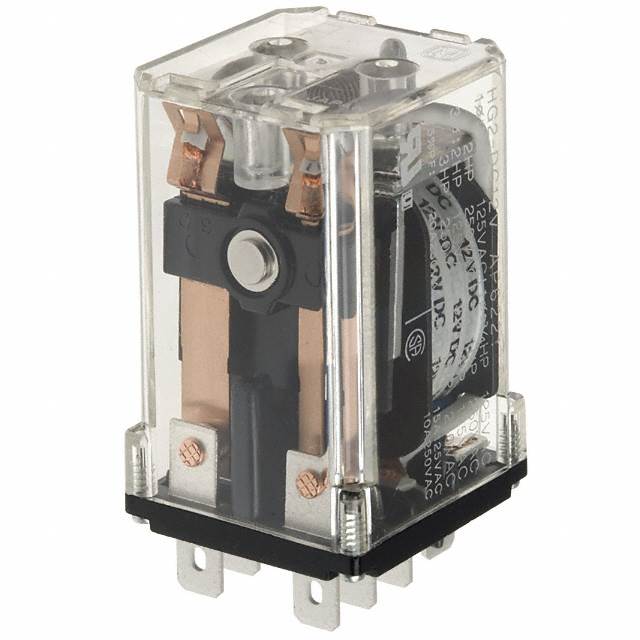

HG2-DC12V
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HG2-DC12V with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HG2-DC12V with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HG2-DC12V |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE DPDT 20A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HG2-DC12V | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE DPDT 20A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5418 pcs | Data sheet | HG Relays |
| Category | Relays | Turn On Voltage (Max) | 9.6 VDC |
| Turn Off Voltage (Min) | 1.2 VDC | Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) |
| Switching Voltage | 250VAC - Nom | Series | HG |
| Release Time | 15ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | 255-2213 HG2-DC12V-ND |
| Operating Temperature | -50°C ~ 40°C | Operate Time | 15ms |
| Mounting Type | Socketable | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Detailed Description | General Purpose Relay DPDT (2 Form C) 12VDC Coil Socketable | Contact Rating (Current) | 20A |
| Contact Material | Silver Alloy | Contact Form | DPDT (2 Form C) |
| Coil Voltage | 12VDC | Coil Type | Non Latching |
| Coil Resistance | 100 Ohms | Coil Power | 1.4 W |
| Coil Current | 120mA |
