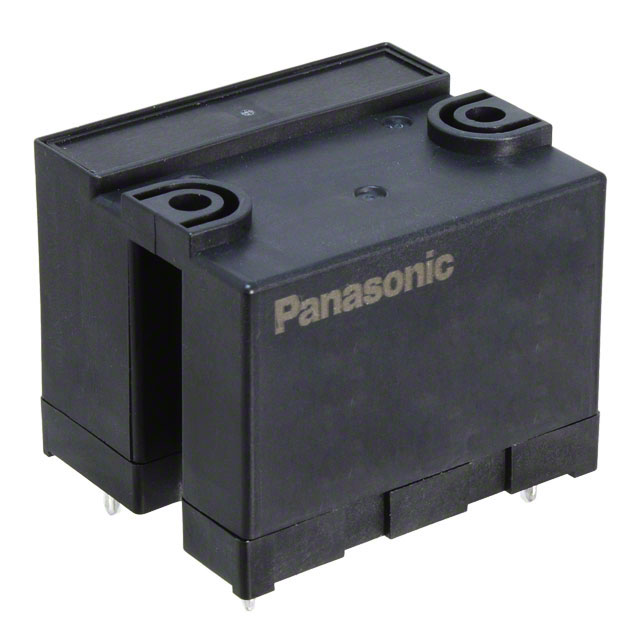

HEV2AN-P-DC6V
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HEV2AN-P-DC6V with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HEV2AN-P-DC6V with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HEV2AN-P-DC6V |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE DPST 20A 6V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $35.969 | $31.971 | $29.973 | $27.975 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HEV2AN-P-DC6V | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE DPST 20A 6V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1069 pcs | Data sheet | HE-V Series DatasheetHE-V Series New Prod Intro |
| Category | Relays | Turn On Voltage (Max) | 4.2 VDC |
| Turn Off Voltage (Min) | 0.3 VDC | Termination Style | PC Pin |
| Switching Voltage | 400VDC - Nom | Series | HE-V |
| Release Time | 10ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | 255-4141 |
| Operating Temperature | -40°C ~ 55°C | Operate Time | 30ms |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | - | Detailed Description | General Purpose Relay DPST-NO (2 Form A) 6VDC Coil Through Hole |
| Contact Rating (Current) | 20A | Contact Material | Silver Nickel (AgNi) |
| Contact Form | DPST-NO (2 Form A) | Coil Voltage | 6VDC |
| Coil Type | Non Latching | Coil Resistance | 18.8 Ohms |
| Coil Power | 1.92 W | Coil Current | 320mA |
