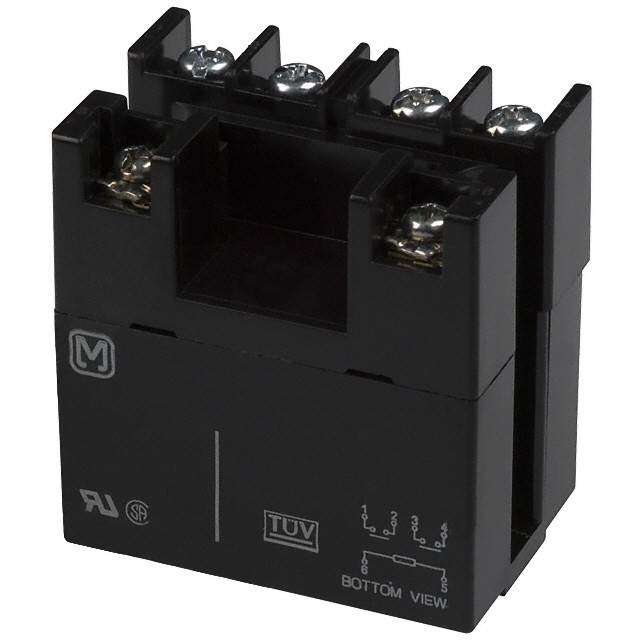

HE2AN-SW-DC48V
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HE2AN-SW-DC48V with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HE2AN-SW-DC48V with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HE2AN-SW-DC48V |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE DPST 25A 48V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 20 pcs | ||||
|---|---|---|---|---|---|
| $9.626 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HE2AN-SW-DC48V | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE DPST 25A 48V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3445 pcs | Data sheet | HE Series Datasheet |
| Category | Relays | Turn On Voltage (Max) | 33.6 VDC |
| Turn Off Voltage (Min) | 4.8 VDC | Termination Style | Screw Terminal |
| Switching Voltage | 277VAC, 30VDC - Max | Series | HE |
| Release Time | 10ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | 255-1675 |
| Operating Temperature | -50°C ~ 55°C | Operate Time | 30ms |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | - | Detailed Description | General Purpose Relay DPST-NO (2 Form A) 48VDC Coil Chassis Mount |
| Contact Rating (Current) | 25A | Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Form | DPST-NO (2 Form A) | Coil Voltage | 48VDC |
| Coil Type | Non Latching | Coil Resistance | 1.2 kOhms |
| Coil Power | 1.92 W | Coil Current | 40.0mA |
