EZA-NT55AAAJ

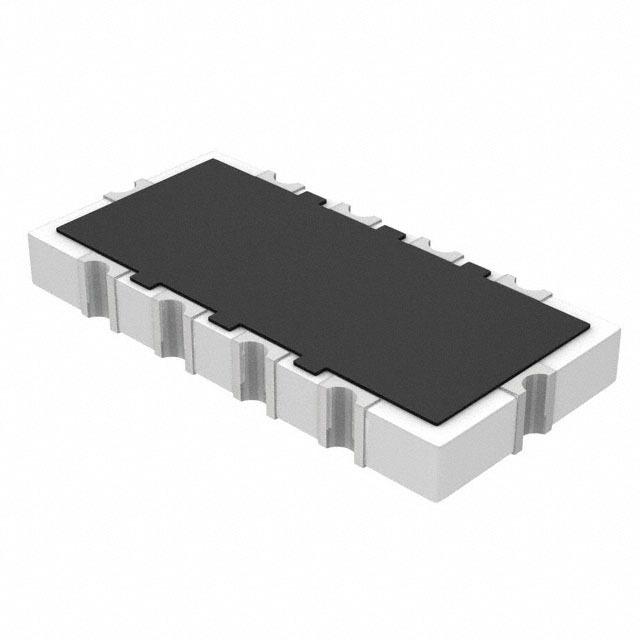

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EZA-NT55AAAJ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EZA-NT55AAAJ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EZA-NT55AAAJ |
|---|---|
| Manufacturer | Panasonic |
| Description | FILTER RC(PI) 470 OHM/470PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | EZA-NT55AAAJ | Manufacturer | Panasonic |
|---|---|---|---|
| Description | FILTER RC(PI) 470 OHM/470PF SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6029 pcs | Data sheet | EZACT,DT,ST,SS,NT_EZASTB,SSB Series |
| Category | Filters | Voltage - Rated | 50V |
| Values | R = 470 Ohms, C = 470pF | Type | Low Pass |
| Technology | RC (Pi) | Size / Dimension | 0.252" L x 0.122" W (6.40mm x 3.10mm) |
| Series | EZANT | Resistance - Channel (Ohms) | 470 |
| Packaging | Tape & Reel (TR) | Package / Case | 2512 (6432 Metric), Concave |
| Other Names | EZANT55AAAJ PNT55TR |
Operating Temperature | -25°C ~ 85°C |
| Number of Channels | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height | 0.039" (1.00mm) | Filter Order | 1st |
| ESD Protection | No | Detailed Description | RC (Pi) EMI Filter 1st Order Low Pass 4 Channel R = 470 Ohms, C = 470pF 2512 (6432 Metric), Concave |
| Center / Cutoff Frequency | - | Attenuation Value | - |
| Applications | Data Lines for Mobile Devices |
