EXB-Q16P681J

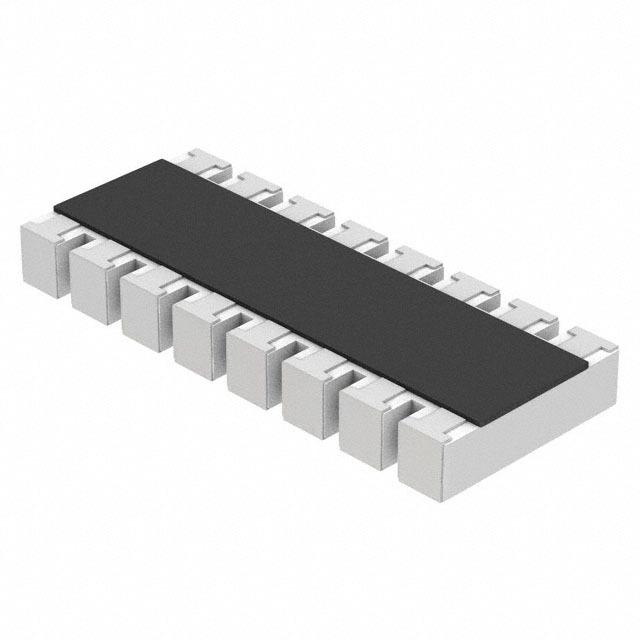

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EXB-Q16P681J with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EXB-Q16P681J with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EXB-Q16P681J |
|---|---|
| Manufacturer | Panasonic |
| Description | RES ARRAY 15 RES 680 OHM 1506 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | ||||
|---|---|---|---|---|---|
| $0.067 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | EXB-Q16P681J | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RES ARRAY 15 RES 680 OHM 1506 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 359545 pcs | Data sheet | EXB(D,E,A,Q) Series DatasheetSMD Resistors Tech GuideEXB-Q16P681J View All SpecificationsFixed Resistors Prod Catalog |
| Category | Resistors | Tolerance | ±5% |
| Temperature Coefficient | ±200ppm/°C | Supplier Device Package | 1506 |
| Size / Dimension | 0.150" L x 0.063" W (3.80mm x 1.60mm) | Series | EXB |
| Resistor-Ratio-Drift | - | Resistor Matching Ratio | - |
| Resistance (Ohms) | 680 | Power Per Element | 25mW |
| Packaging | Tape & Reel (TR) | Package / Case | 1506, Convex, Long Side Terminals |
| Other Names | EXBQ16P681J U6681TR |
Operating Temperature | -55°C ~ 125°C |
| Number of Resistors | 15 | Number of Pins | 16 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.022" (0.55mm) | Detailed Description | 680 Ohm ±5% 25mW Power Per Element Bussed 15 Resistor Network/Array ±200ppm/°C 1506, Convex, Long Side Terminals |
| Circuit Type | Bussed | Applications | - |
