EVQ-QXM01W

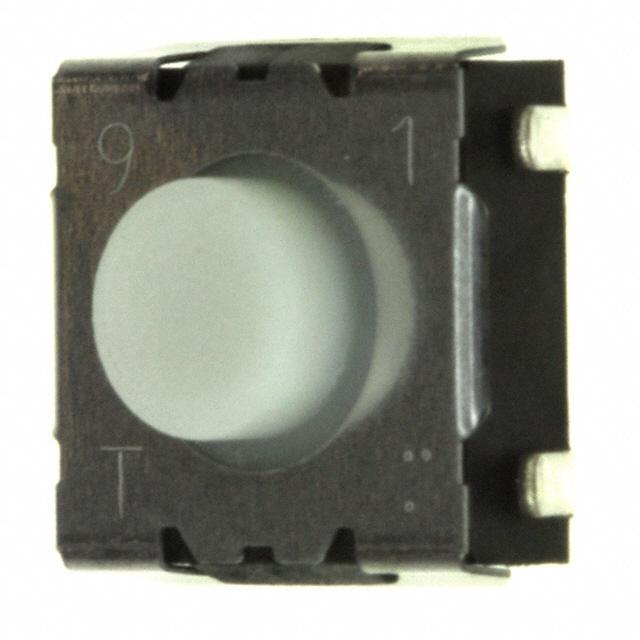

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EVQ-QXM01W with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EVQ-QXM01W with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EVQ-QXM01W |
|---|---|
| Manufacturer | Panasonic |
| Description | SWITCH TACTILE SPST-NO 0.02A 15V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4000 pcs | 8000 pcs | |||
|---|---|---|---|---|---|
| $0.127 | $0.119 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | EVQ-QXM01W | Manufacturer | Panasonic |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.02A 15V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 194378 pcs | Data sheet | EVQ-PH,QX Series |
| Category | Switches | Termination Style | J Lead |
| Switch Travel | 0.25mm | Switch Function | Off-Mom |
| Series | EVQQX | Packaging | Tape & Reel (TR) |
| Outline | 6.20mm x 6.20mm | Other Names | EVQQXM01W P13602STR |
| Operating Temperature | -20°C ~ 70°C | Operating Force | 130gf |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 1,000,000 Cycles | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | Grounding Pin | Detailed Description | Tactile Switch SPST-NO Top Actuated Surface Mount |
| Contact Rating @ Voltage | 0.02A @ 15VDC | Circuit | SPST-NO |
| Actuator Type | Standard | Actuator Orientation | Top Actuated |
| Actuator Material | - | Actuator Length, Right Angle | - |
| Actuator Height off PCB, Vertical | 2.00mm |
