EVQ-Q2D01W

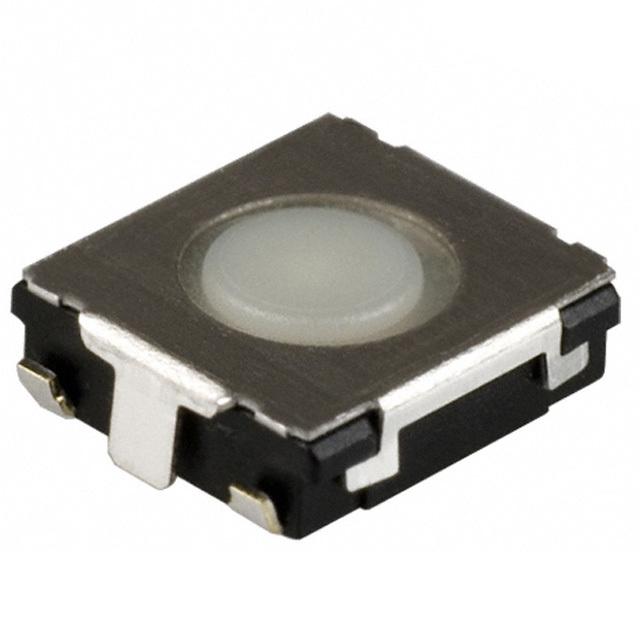

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EVQ-Q2D01W with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EVQ-Q2D01W with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EVQ-Q2D01W |
|---|---|
| Manufacturer | Panasonic |
| Description | SWITCH TACTILE SPST-NO 0.02A 15V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.11 | $0.105 | $0.101 | $0.097 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.094 | $0.086 | $0.075 | $0.064 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | EVQ-Q2D01W | Manufacturer | Panasonic |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.02A 15V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 336185 pcs | Data sheet | EVQ-P0,Q2, EVP-BF Series |
| Category | Switches | Termination Style | J Lead |
| Switch Travel | 0.20mm | Switch Function | Off-Mom |
| Series | EVQQ2 | Packaging | Original-Reel® |
| Outline | 6.60mm x 6.00mm | Other Names | P12933SDKR |
| Operating Temperature | -40°C ~ 85°C | Operating Force | 50gf |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 2,000,000 Cycles | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | Grounding Pin |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Surface Mount | Contact Rating @ Voltage | 0.02A @ 15VDC |
| Circuit | SPST-NO | Actuator Type | Standard |
| Actuator Orientation | Top Actuated | Actuator Material | - |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 2.00mm |
