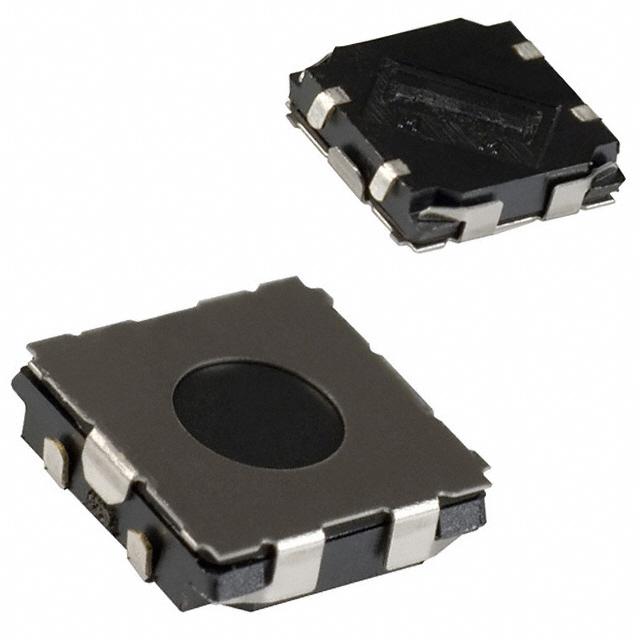

EVQ-PWBA15
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EVQ-PWBA15 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EVQ-PWBA15 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EVQ-PWBA15 |
|---|---|
| Manufacturer | Panasonic |
| Description | SWITCH TACTILE SPDT 0.02A 15V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.239 | $0.23 | $0.226 | $0.218 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.188 | $0.171 | $0.162 | $0.128 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | EVQ-PWBA15 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | SWITCH TACTILE SPDT 0.02A 15V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 165586 pcs | Data sheet | EVQPW |
| Category | Switches | Termination Style | J Lead |
| Switch Travel | 0.50mm, 0.70mm | Switch Function | Off-Mom-Mom |
| Series | EVQPW | Packaging | Cut Tape (CT) |
| Outline | 6.40mm x 6.20mm | Other Names | P10846SCT |
| Operating Temperature | -20°C ~ 70°C | Operating Force | 100/260gf |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 30,000 Cycles | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | Dust Proof | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | - | Detailed Description | Tactile Switch SPDT Top Actuated Surface Mount |
| Contact Rating @ Voltage | 0.02A @ 15VDC | Circuit | SPDT |
| Actuator Type | Standard | Actuator Orientation | Top Actuated |
| Actuator Material | - | Actuator Length, Right Angle | - |
| Actuator Height off PCB, Vertical | 1.50mm |
