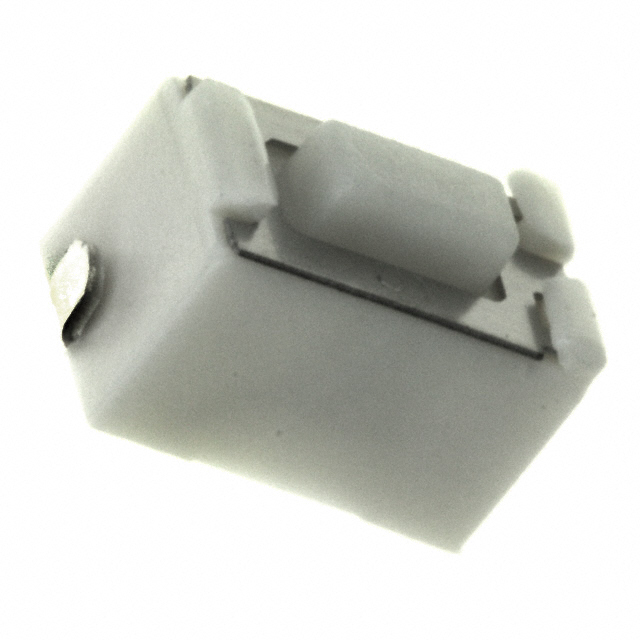

EVQ-PNF05M
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EVQ-PNF05M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EVQ-PNF05M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EVQ-PNF05M |
|---|---|
| Manufacturer | Panasonic |
| Description | SWITCH TACTILE SPST-NO 0.05A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 6000 pcs | |||
|---|---|---|---|---|---|
| $0.106 | $0.099 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | EVQ-PNF05M | Manufacturer | Panasonic |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 202642 pcs | Data sheet | EVQPE1, PN, 5P Series |
| Category | Switches | Termination Style | J Lead |
| Switch Travel | 0.25mm | Switch Function | Off-Mom |
| Series | EVQPN | Packaging | Tape & Reel (TR) |
| Outline | 6.00mm x 3.50mm | Other Names | EVQPNF05M P13598STR |
| Operating Temperature | -30°C ~ 85°C | Operating Force | 160gf |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 50,000 Cycles | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | - |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Surface Mount | Contact Rating @ Voltage | 0.05A @ 12VDC |
| Circuit | SPST-NO | Actuator Type | Standard |
| Actuator Orientation | Top Actuated | Actuator Material | - |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 5.00mm |
