EVQ-PAC09K

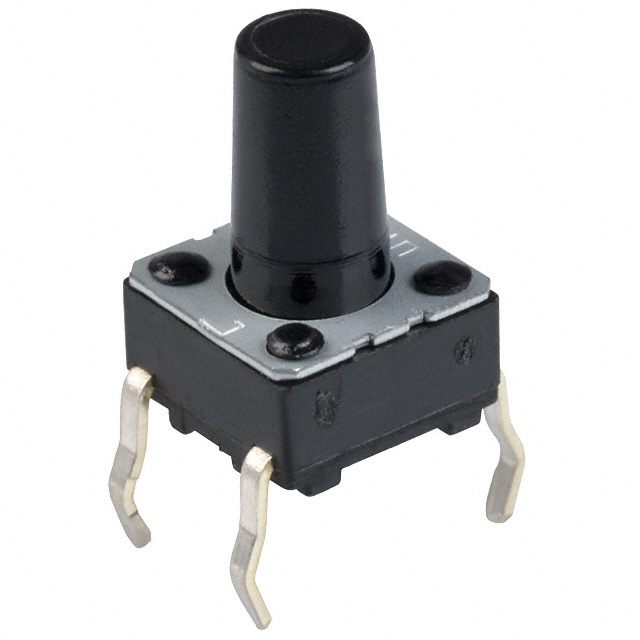

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EVQ-PAC09K with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EVQ-PAC09K with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EVQ-PAC09K |
|---|---|
| Manufacturer | Panasonic |
| Description | SWITCH TACTILE SPST-NO 0.02A 15V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.074 | $0.071 | $0.069 | $0.067 | $0.063 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.059 | $0.057 | $0.043 | $0.036 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | EVQ-PAC09K | Manufacturer | Panasonic |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.02A 15V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 578563 pcs | Data sheet | EVQPA, EVQPB Series Datasheet |
| Category | Switches | Termination Style | PC Pin |
| Switch Travel | 0.25mm | Switch Function | Off-Mom |
| Series | EVQPA | Packaging | Bulk |
| Outline | 6.00mm x 6.00mm | Other Names | EVQPAC09K P8012S |
| Operating Temperature | -20°C ~ 70°C | Operating Force | 100gf |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 100,000 Cycles | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | - | Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole |
| Contact Rating @ Voltage | 0.02A @ 15VDC | Circuit | SPST-NO |
| Actuator Type | Standard | Actuator Orientation | Top Actuated |
| Actuator Material | - | Actuator Length, Right Angle | - |
| Actuator Height off PCB, Vertical | 9.50mm |
