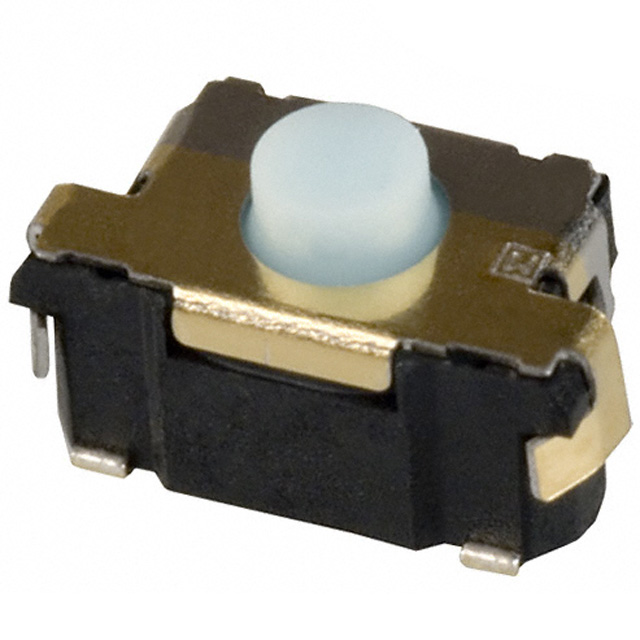

EVQ-P4HB3B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EVQ-P4HB3B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EVQ-P4HB3B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EVQ-P4HB3B |
|---|---|
| Manufacturer | Panasonic |
| Description | SWITCH TACTILE SPST-NO 0.02A 15V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.355 | $0.342 | $0.322 | $0.283 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.258 | $0.245 | $0.238 | $0.187 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | EVQ-P4HB3B | Manufacturer | Panasonic |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.02A 15V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 111933 pcs | Data sheet | EVQP4 Series |
| Category | Switches | Termination Style | SMD (SMT) Tab |
| Switch Travel | 0.70mm | Switch Function | Off-Mom |
| Series | EVQP4 | Packaging | Cut Tape (CT) |
| Outline | 6.20mm x 2.55mm | Other Names | P15505CT |
| Operating Temperature | -40°C ~ 85°C | Operating Force | 250gf |
| Mounting Type | Edge Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 1,000,000 Cycles | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | - |
| Detailed Description | Tactile Switch SPST-NO Side Actuated Edge Mount, Right Angle | Contact Rating @ Voltage | 0.02A @ 15VDC |
| Circuit | SPST-NO | Actuator Type | Standard |
| Actuator Orientation | Side Actuated | Actuator Material | - |
| Actuator Length, Right Angle | 2.50mm | Actuator Height off PCB, Vertical | - |
