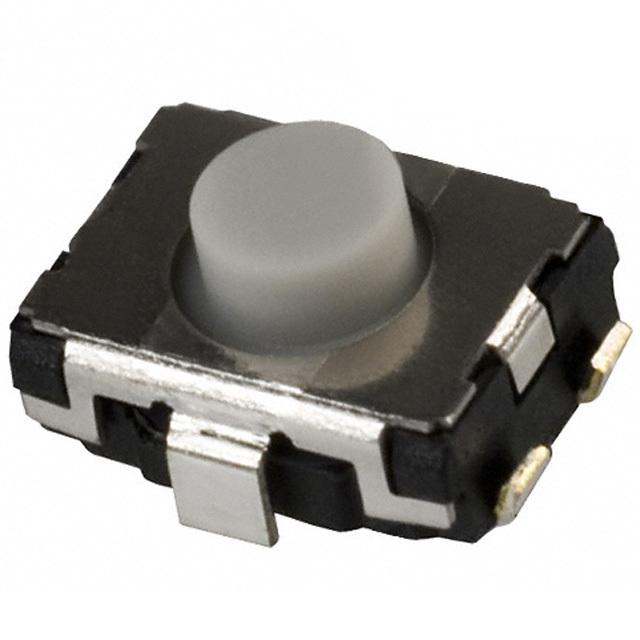

EVQ-P2D02Q
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EVQ-P2D02Q with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EVQ-P2D02Q with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EVQ-P2D02Q |
|---|---|
| Manufacturer | Panasonic |
| Description | SWITCH TACTILE SPST-NO 0.02A 15V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4000 pcs | 8000 pcs | |||
|---|---|---|---|---|---|
| $0.146 | $0.136 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | EVQ-P2D02Q | Manufacturer | Panasonic |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.02A 15V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 161141 pcs | Data sheet | EVQ-P2,P9,3P2 Series |
| Category | Switches | Termination Style | J Lead |
| Switch Travel | 0.70mm | Switch Function | Off-Mom |
| Series | EVQP2 | Packaging | Tape & Reel (TR) |
| Outline | 4.70mm x 3.50mm | Other Names | EVQP2D02Q P11085STR |
| Operating Temperature | -40°C ~ 85°C | Operating Force | 350gf |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 500,000 Cycles | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | Grounding Pin |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Surface Mount | Contact Rating @ Voltage | 0.02A @ 15VDC |
| Circuit | SPST-NO | Actuator Type | Standard |
| Actuator Orientation | Top Actuated | Actuator Material | - |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 2.50mm |
