EVQ-11U05R

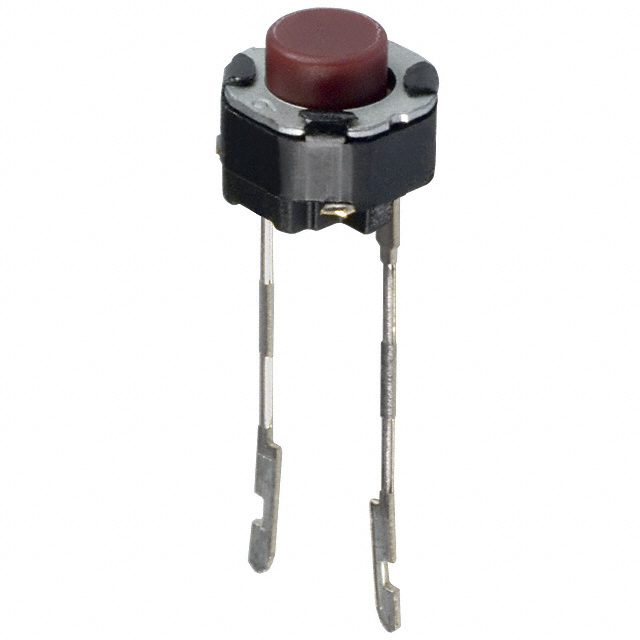

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EVQ-11U05R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EVQ-11U05R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EVQ-11U05R |
|---|---|
| Manufacturer | Panasonic |
| Description | SWITCH TACTILE SPST-NO 0.02A 15V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2500 pcs | 5000 pcs | |||
|---|---|---|---|---|---|
| $0.045 | $0.038 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | EVQ-11U05R | Manufacturer | Panasonic |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.02A 15V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 501374 pcs | Data sheet | EVQ-11 Series DatasheetLight Touch Switches, Pkg Spec |
| Category | Switches | Termination Style | PC Pin |
| Switch Travel | 0.25mm | Switch Function | Off-Mom |
| Series | EVQ11 | Packaging | Tape & Box (TB) |
| Outline | 6.00mm x 6.00mm | Other Names | EVQ11U05R P8083STB |
| Operating Temperature | -20°C ~ 70°C | Operating Force | 260gf |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 50,000 Cycles | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | - | Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole |
| Contact Rating @ Voltage | 0.02A @ 15VDC | Circuit | SPST-NO |
| Actuator Type | Standard | Actuator Orientation | Top Actuated |
| Actuator Material | - | Actuator Length, Right Angle | - |
| Actuator Height off PCB, Vertical | 5.00mm |
