EVQ-11D09K

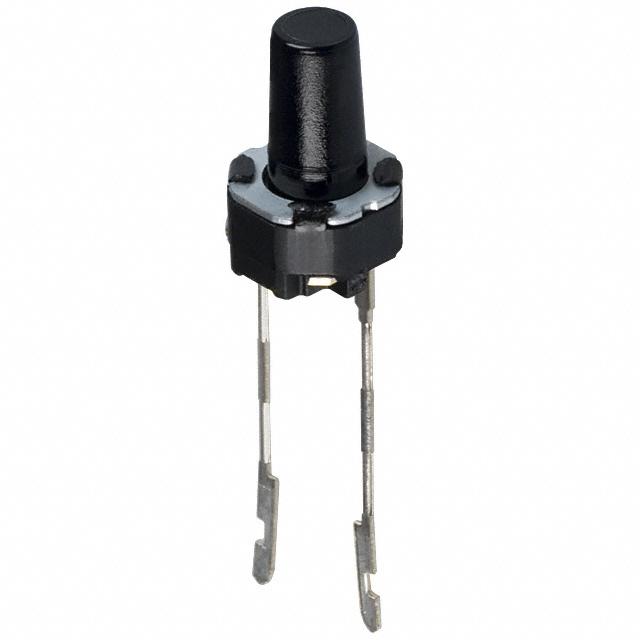

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EVQ-11D09K with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EVQ-11D09K with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EVQ-11D09K |
|---|---|
| Manufacturer | Panasonic |
| Description | SWITCH TACTILE SPST-NO 0.02A 15V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.084 | $0.082 | $0.08 | $0.077 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.072 | $0.068 | $0.065 | $0.05 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | EVQ-11D09K | Manufacturer | Panasonic |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.02A 15V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 435251 pcs | Data sheet | EVQ-11 Series DatasheetLight Touch Switches, Pkg Spec |
| Category | Switches | Termination Style | PC Pin |
| Switch Travel | 0.25mm | Switch Function | Off-Mom |
| Series | EVQ11 | Packaging | Cut Tape (CT) |
| Outline | 6.00mm x 6.00mm | Other Names | P15933SCT |
| Operating Temperature | -20°C ~ 70°C | Operating Force | 100gf |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 1,000,000 Cycles | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | - | Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole |
| Contact Rating @ Voltage | 0.02A @ 15VDC | Circuit | SPST-NO |
| Actuator Type | Standard | Actuator Orientation | Top Actuated |
| Actuator Material | - | Actuator Length, Right Angle | - |
| Actuator Height off PCB, Vertical | 9.50mm |
