EVP-AEGE2A

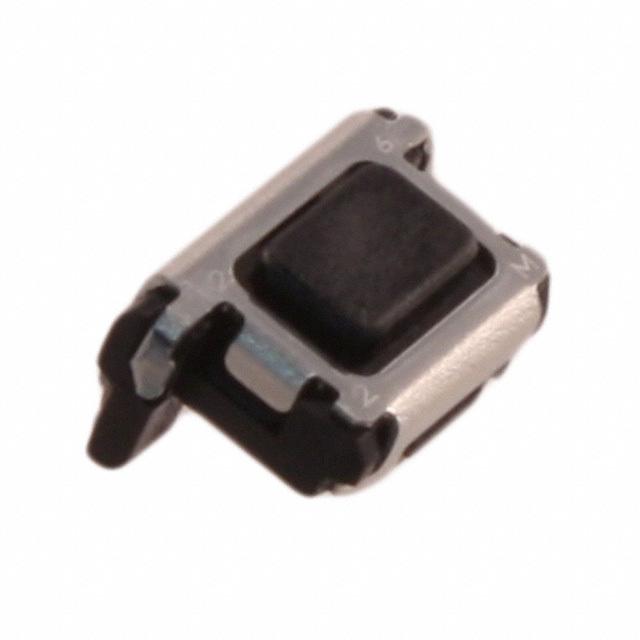

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EVP-AEGE2A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EVP-AEGE2A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EVP-AEGE2A |
|---|---|
| Manufacturer | Panasonic |
| Description | SWITCH TACTILE SPST-NO 0.02A 15V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.35 | $0.337 | $0.318 | $0.28 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.254 | $0.241 | $0.235 | $0.184 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | EVP-AEGE2A | Manufacturer | Panasonic |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.02A 15V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 122091 pcs | Data sheet | EVP-AE,AF,AJ Series Prod IntroEVP-AEGE2A Series SpecEVP-AE Series Datasheet |
| Category | Switches | Termination Style | SMD (SMT) Tab |
| Switch Travel | 0.13mm | Switch Function | Off-Mom |
| Series | EVPAE | Packaging | Original-Reel® |
| Outline | 4.50mm x 2.25mm | Other Names | P17063DKR |
| Operating Temperature | -40°C ~ 85°C | Operating Force | 160gf |
| Mounting Type | Edge Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 200,000 Cycles | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | - |
| Detailed Description | Tactile Switch SPST-NO Side Actuated Edge Mount, Right Angle | Contact Rating @ Voltage | 0.02A @ 15VDC |
| Circuit | SPST-NO | Actuator Type | Rectangular Button |
| Actuator Orientation | Side Actuated | Actuator Material | - |
| Actuator Length, Right Angle | 1.70mm | Actuator Height off PCB, Vertical | - |
