ETQ-P8M1R5JFA

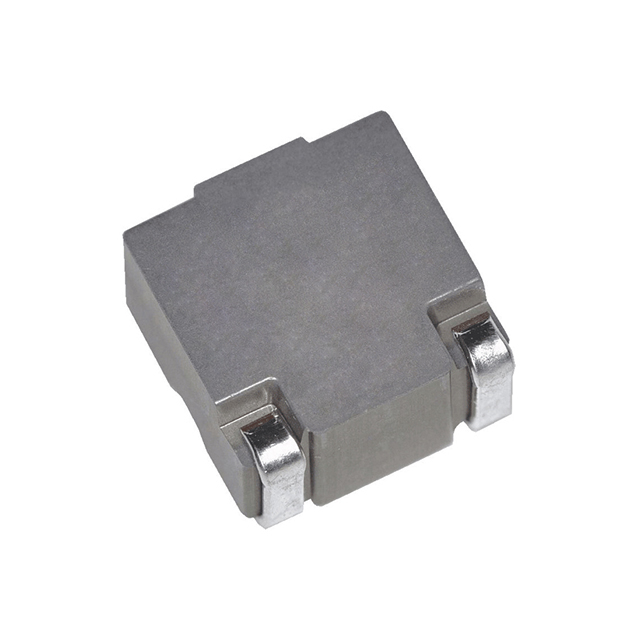

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ETQ-P8M1R5JFA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ETQ-P8M1R5JFA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ETQ-P8M1R5JFA |
|---|---|
| Manufacturer | Panasonic |
| Description | POWER CHOKE COIL PCC MC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | 500 pcs | 750 pcs | ||
|---|---|---|---|---|---|
| $0.616 | $0.582 | $0.548 | |||
| 1250 pcs | 2500 pcs | 6250 pcs | |||
| $0.531 | $0.514 | $0.497 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ETQ-P8M1R5JFA | Manufacturer | Panasonic |
|---|---|---|---|
| Description | POWER CHOKE COIL PCC MC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61868 pcs | Data sheet | ETQ-P8M Series DatasheetETQ-P8M Series Prod IntroETQ-P8M Series Line ExtensionInductors Product Catalog |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.496" L x 0.520" W (12.60mm x 13.20mm) | Shielding | Shielded |
| Series | PCC-M1280MF | Ratings | AEC-Q200 |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead | Other Names | ETQP8M1R5JFA PCD2471TR |
| Operating Temperature | -40°C ~ 160°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Metal Composite |
| Manufacturer Standard Lead Time | 36 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 1.5µH |
| Height - Seated (Max) | 0.315" (8.00mm) | Frequency - Self Resonant | - |
| Features | - | Detailed Description | 1.5µH Shielded Inductor 27.7A 1.98 mOhm Max 2-SMD, J-Lead |
| DC Resistance (DCR) | 1.98 mOhm Max | Current Rating | 27.7A |
| Current - Saturation | 29.9A |
