ETQ-P6F0R8LFA

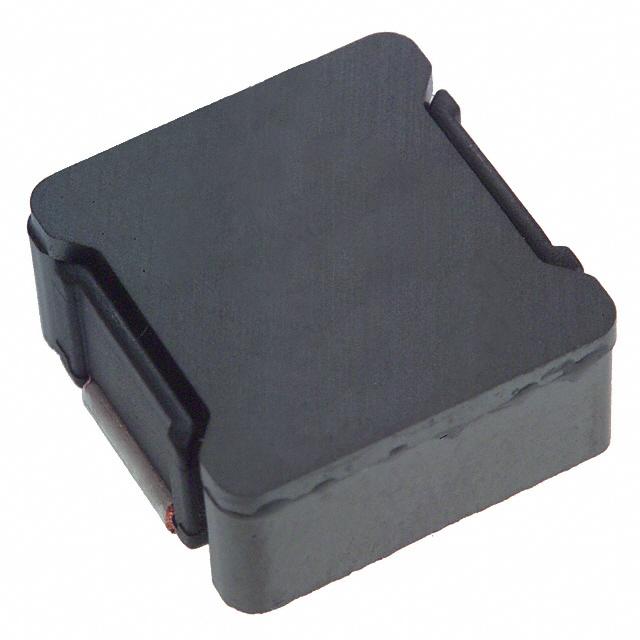

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ETQ-P6F0R8LFA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ETQ-P6F0R8LFA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ETQ-P6F0R8LFA |
|---|---|
| Manufacturer | Panasonic |
| Description | FIXED IND 800NH 14.2A 2.24 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $0.974 | $0.898 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ETQ-P6F0R8LFA | Manufacturer | Panasonic |
|---|---|---|---|
| Description | FIXED IND 800NH 14.2A 2.24 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 34175 pcs | Data sheet | ETQ-P6F Type, PCC-F126F (N6) Series |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±30% | Supplier Device Package | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Shielding | Shielded |
| Series | PCC-F126F (N6) | Ratings | - |
| Q @ Freq | - | Packaging | Cut Tape (CT) |
| Package / Case | 2-SMD, J-Lead | Other Names | PCD1317CT |
| Operating Temperature | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 800nH | Height - Seated (Max) | 0.224" (5.70mm) |
| Frequency - Self Resonant | - | Detailed Description | 800nH Shielded Inductor 14.2A 2.24 mOhm Max 2-SMD, J-Lead |
| DC Resistance (DCR) | 2.24 mOhm Max | Current Rating | 14.2A |
| Current - Saturation | 25.2A |
