ETQ-P3M100HFN

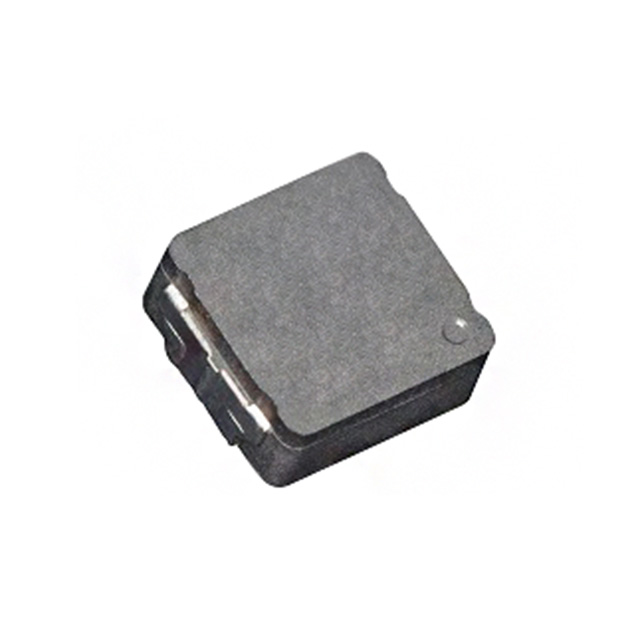

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ETQ-P3M100HFN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ETQ-P3M100HFN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ETQ-P3M100HFN |
|---|---|
| Manufacturer | Panasonic |
| Description | 6X6 10UH HIGH FREQUENCY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.606 | $0.561 | $0.393 | $0.318 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ETQ-P3M100HFN | Manufacturer | Panasonic |
|---|---|---|---|
| Description | 6X6 10UH HIGH FREQUENCY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67538 pcs | Data sheet | ETQ-P3MzzzHFx Series Product InfoPower Inductors Operating Temp RangeETQ-P3MzzzHFx Series DatasheetInductors Product Catalog |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.256" L x 0.236" W (6.50mm x 6.00mm) | Shielding | Shielded |
| Series | PCC-M0630M | Ratings | AEC-Q200 |
| Q @ Freq | - | Packaging | Original-Reel® |
| Package / Case | 2-SMD, J-Lead | Other Names | P122640DKR |
| Operating Temperature | -40°C ~ 150°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Metal Composite |
| Manufacturer Standard Lead Time | 22 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 10µH |
| Height - Seated (Max) | 0.118" (3.00mm) | Frequency - Self Resonant | - |
| Features | - | Detailed Description | 10µH Shielded Inductor 3.7A 74.8 mOhm Max 2-SMD, J-Lead |
| DC Resistance (DCR) | 74.8 mOhm Max | Current Rating | 3.7A |
| Current - Saturation | 5.5A |
