ESE-22MV21

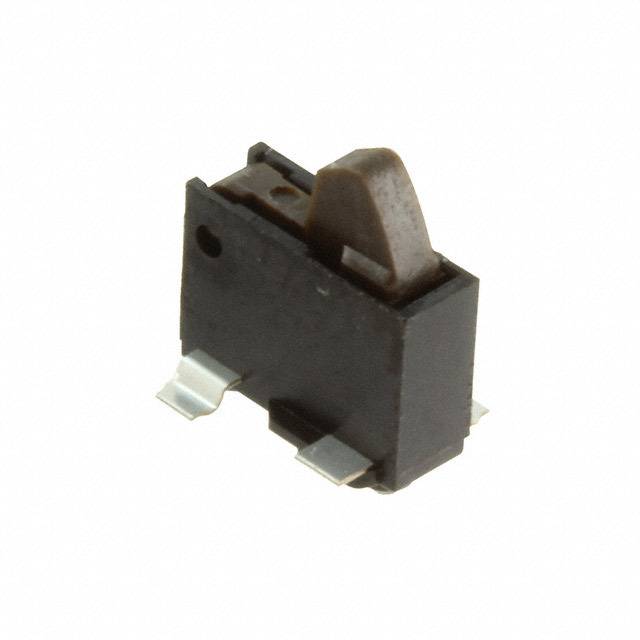

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ESE-22MV21 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ESE-22MV21 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ESE-22MV21 |
|---|---|
| Manufacturer | Panasonic |
| Description | SWITCH DETECTOR SPST |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.191 | $0.181 | $0.174 | $0.167 | $0.159 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.127 | $0.116 | $0.112 | $0.101 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ESE-22MV21 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | SWITCH DETECTOR SPST | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 237623 pcs | Data sheet | ESE-22 Series Datasheet |
| Category | Switches | Voltage Rating - DC | 5V |
| Termination Style | SMD (SMT) Tab | Switch Function | Off-Mom |
| Series | ESE22 | Release Force | - |
| Pretravel | - | Packaging | Bulk |
| Overtravel | - | Other Names | ESE-22MV21-ND ESE22MV21 ESE22MV21-ND P122547 Q2168426 Q3263904 Q3990454 Q4233170 Q4733294 Q4733294A Q4791270 |
| Operating Temperature | -10°C ~ 70°C | Operating Position | 0.232" (5.9mm) |
| Operating Force | 30gf | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 50,000 Cycles |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | Board Guide |
| Electrical Life | 50,000 Cycles | Differential Travel | - |
| Current Rating | 10mA (DC) | Circuit | SPST-NO |
| Actuator Type | Angled Toggle (Detector) |
