Home > Products > Circuit Protection > TVS - Varistors, MOVs > ERZ-VA5D560

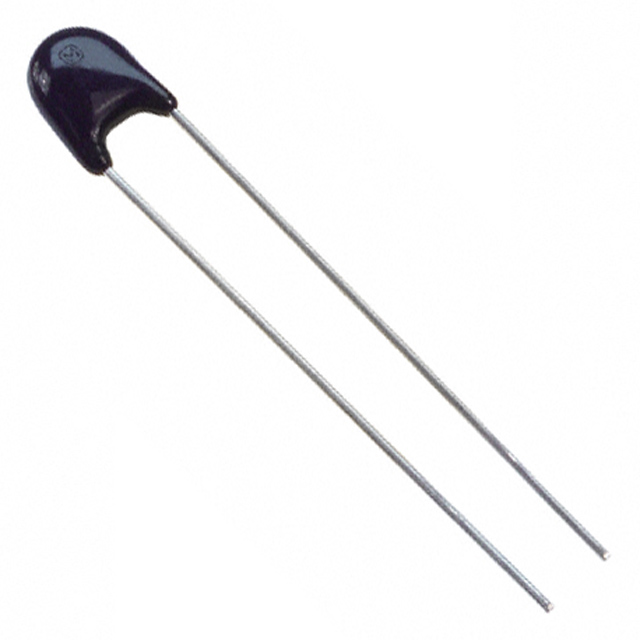

ERZ-VA5D560

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ERZ-VA5D560 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ERZ-VA5D560
Manufacturer	Panasonic
Description	VARISTOR 56V 250A DISC 5MM
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 552794 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$0.042

Product parameter
Data sheet

Product parameter

Part Number	ERZ-VA5D560	Manufacturer	Panasonic
Description	VARISTOR 56V 250A DISC 5MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	552794 pcs	Data sheet	ZNR Series, Type D
Category	Circuit Protection	Varistor Voltage (Typ)	56V
Varistor Voltage (Min)	50V	Varistor Voltage (Max)	62V
Series	ZNR®	Packaging	Tape & Box (TB)
Package / Case	Disc 5mm	Other Names	ERZVA5D560 Q4164154ZZZ
Operating Temperature	-40°C ~ 85°C (TA)	Number of Circuits	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Maximum DC Volts	45V	Maximum AC Volts	35V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Energy	1.8J
Detailed Description	56V 250A Varistor 1 Circuit Through Hole Disc 5mm	Current - Surge	250A
Capacitance @ Frequency	12200pF @ 1kHz
