Home > Products > Resistors > Through Hole Resistors > ERD-S2TJ240V

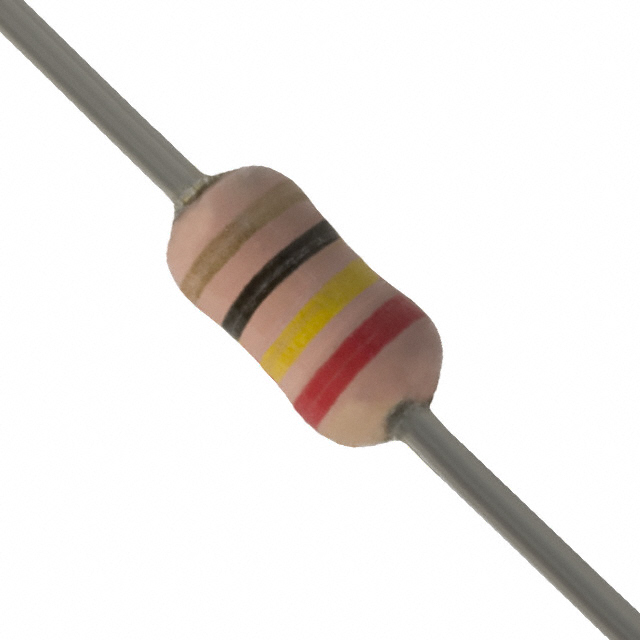

ERD-S2TJ240V

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ERD-S2TJ240V with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ERD-S2TJ240V
Manufacturer	Panasonic
Description	RES 24 OHM 1/4W 5% AXIAL
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5033 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	ERD-S2TJ240V	Manufacturer	Panasonic
Description	RES 24 OHM 1/4W 5% AXIAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5033 pcs	Data sheet	ERDS1, ERDS2, ERD25
Category	Resistors	Tolerance	±5%
Temperature Coefficient	-150/ -350ppm/°C	Supplier Device Package	Axial
Size / Dimension	0.067" Dia x 0.126" L (1.70mm x 3.20mm)	Series	ERDS2
Resistance	24 Ohms	Power (Watts)	0.25W, 1/4W
Packaging	Tape & Box (TB)	Package / Case	Axial
Other Names	ERDS2TJ240V P24BATB	Operating Temperature	-55°C ~ 155°C
Number of Terminations	2	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	-
Features	-	Failure Rate	-
Detailed Description	24 Ohms ±5% 0.25W, 1/4W Through Hole Resistor Axial Carbon Film	Composition	Carbon Film
