ERD-S1TJ682V

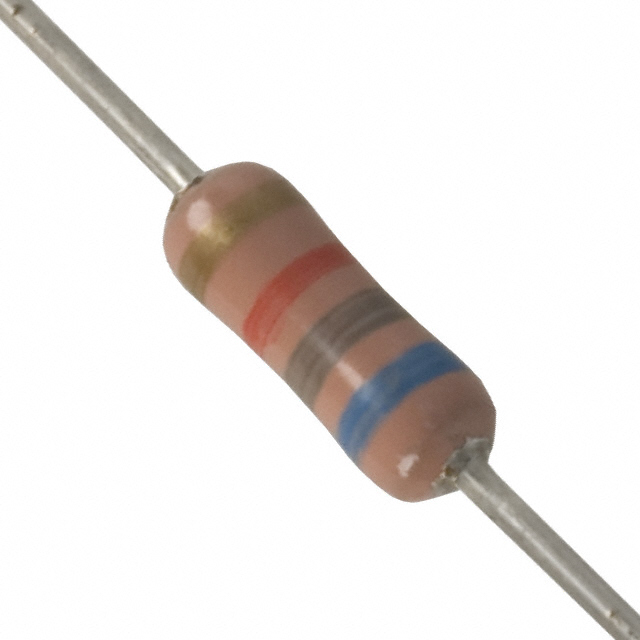

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ERD-S1TJ682V with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ERD-S1TJ682V with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ERD-S1TJ682V |
|---|---|
| Manufacturer | Panasonic |
| Description | RES 6.8K OHM 1/2W 5% AXIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ERD-S1TJ682V | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RES 6.8K OHM 1/2W 5% AXIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5524 pcs | Data sheet | ERDS1, ERDS2, ERD25 |
| Category | Resistors | Tolerance | ±5% |
| Temperature Coefficient | -150/ -350ppm/°C | Supplier Device Package | Axial |
| Size / Dimension | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | Series | ERDS1 |
| Resistance | 6.8 kOhms | Power (Watts) | 0.5W, 1/2W |
| Packaging | Tape & Box (TB) | Package / Case | Axial |
| Other Names | ERDS1TJ682V P6.8KBBTB |
Operating Temperature | -55°C ~ 155°C |
| Number of Terminations | 2 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | - |
| Features | - | Failure Rate | - |
| Detailed Description | 6.8 kOhms ±5% 0.5W, 1/2W Through Hole Resistor Axial Carbon Film | Composition | Carbon Film |
