ELL-SFG820MA

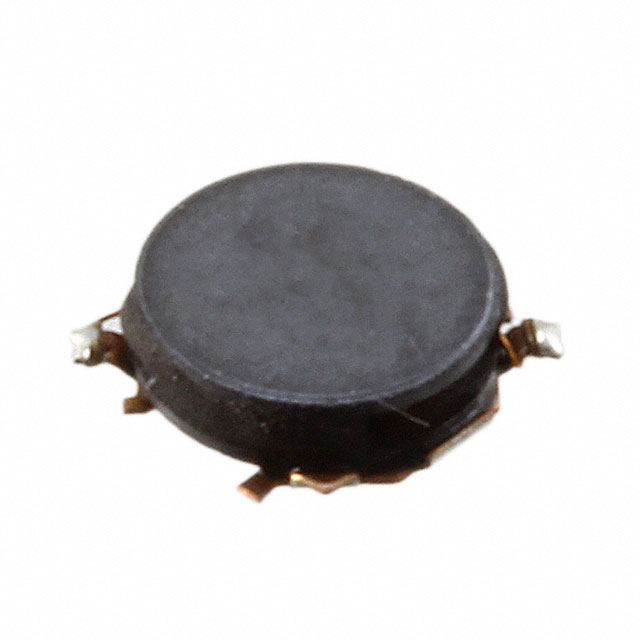

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELL-SFG820MA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELL-SFG820MA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELL-SFG820MA |
|---|---|
| Manufacturer | Panasonic |
| Description | FIXED IND 82UH 270MA 2 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 4000 pcs | |||
|---|---|---|---|---|---|
| $0.09 | $0.084 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELL-SFG820MA | Manufacturer | Panasonic |
|---|---|---|---|
| Description | FIXED IND 82UH 270MA 2 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 267993 pcs | Data sheet | ELL-SFG-A Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) | Shielding | Shielded |
| Series | G | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | ELLSFG820MA PCD2417TR |
| Operating Temperature | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 82µH | Height - Seated (Max) | 0.047" (1.20mm) |
| Frequency - Self Resonant | - | Detailed Description | 82µH Shielded Wirewound Inductor 270mA 2 Ohm Nonstandard |
| DC Resistance (DCR) | 2 Ohm | Current Rating | 270mA |
| Current - Saturation | 220mA |
