ELL-8TP680MB

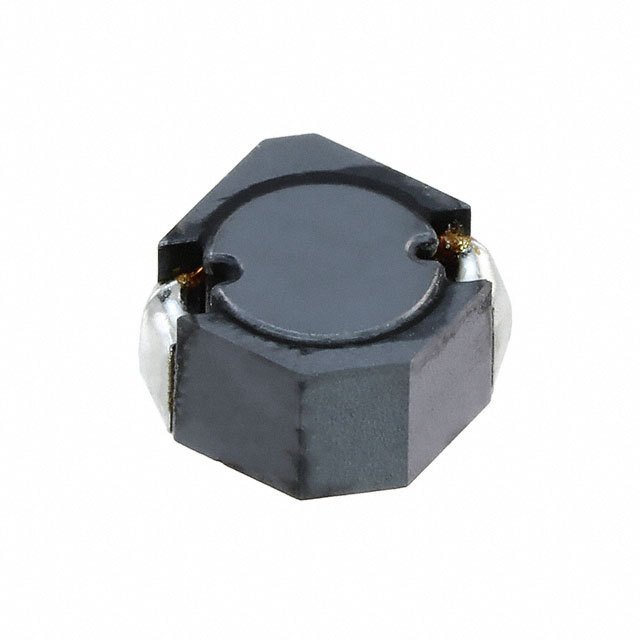

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELL-8TP680MB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELL-8TP680MB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELL-8TP680MB |
|---|---|
| Manufacturer | Panasonic |
| Description | FIXED IND 68UH 1.3A 140 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 2500 pcs | ||
|---|---|---|---|---|---|
| $0.183 | $0.162 | $0.157 | |||
| 5000 pcs | 12500 pcs | 25000 pcs | |||
| $0.152 | $0.147 | $0.142 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELL-8TP680MB | Manufacturer | Panasonic |
|---|---|---|---|
| Description | FIXED IND 68UH 1.3A 140 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 148739 pcs | Data sheet | ELL-8TP Series Prod InfoELL-8TP Series Datasheet |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Size / Dimension | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Shielding | Shielded | Series | P |
| Ratings | - | Q @ Freq | - |
| Packaging | Tape & Reel (TR) | Package / Case | Nonstandard |
| Other Names | ELL8TP680MB PCD2450TR |
Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Core | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 68µH | Height - Seated (Max) | 0.197" (5.00mm) |
| Frequency - Self Resonant | - | Detailed Description | 68µH Shielded Wirewound Inductor 1.3A 140 mOhm Nonstandard |
| DC Resistance (DCR) | 140 mOhm | Current Rating | 1.3A |
| Current - Saturation | 1A |
