ELL-6UH561M

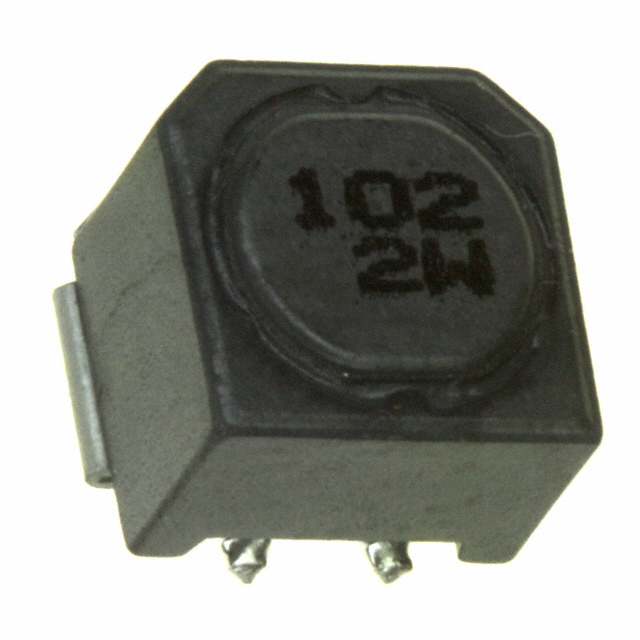

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELL-6UH561M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELL-6UH561M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELL-6UH561M |
|---|---|
| Manufacturer | Panasonic |
| Description | FIXED IND 560UH 260MA 2.53 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 3000 pcs | 5000 pcs | 10000 pcs | 25000 pcs |
|---|---|---|---|---|---|
| $0.107 | $0.101 | $0.098 | $0.095 | $0.091 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ELL-6UH561M | Manufacturer | Panasonic |
|---|---|---|---|
| Description | FIXED IND 560UH 260MA 2.53 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 251320 pcs | Data sheet | H Series Datasheet |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.252" L x 0.236" W (6.40mm x 6.00mm) | Shielding | Shielded |
| Series | H | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | ELL6UH561M PCD2128TR |
| Operating Temperature | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 560µH |
| Height - Seated (Max) | 0.197" (5.00mm) | Frequency - Self Resonant | - |
| Detailed Description | 560µH Shielded Wirewound Inductor 260mA 2.53 Ohm Nonstandard | DC Resistance (DCR) | 2.53 Ohm |
| Current Rating | 260mA | Current - Saturation | - |
