ELL-6PG470M

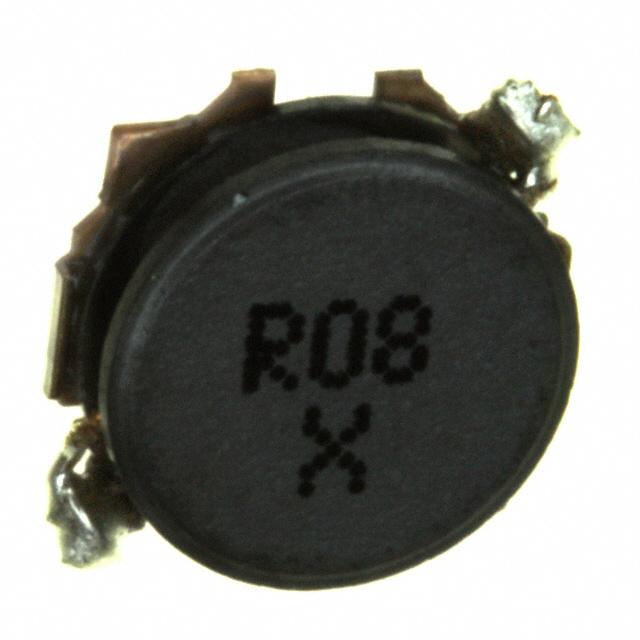

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELL-6PG470M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELL-6PG470M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELL-6PG470M |
|---|---|
| Manufacturer | Panasonic |
| Description | FIXED IND 47UH 600MA 470 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 3000 pcs | 5000 pcs | 10000 pcs | 25000 pcs |
|---|---|---|---|---|---|
| $0.115 | $0.108 | $0.105 | $0.102 | $0.098 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ELL-6PG470M | Manufacturer | Panasonic |
|---|---|---|---|
| Description | FIXED IND 47UH 600MA 470 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 220362 pcs | Data sheet | ELL-6GG, PG Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) | Shielding | Shielded |
| Series | G | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | ELL6PG470M PCD2270TR |
| Operating Temperature | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 47µH |
| Height - Seated (Max) | 0.079" (2.00mm) | Frequency - Self Resonant | - |
| Detailed Description | 47µH Shielded Wirewound Inductor 600mA 470 mOhm Nonstandard | DC Resistance (DCR) | 470 mOhm |
| Current Rating | 600mA | Current - Saturation | 550mA |
