ELJ-PC120KF

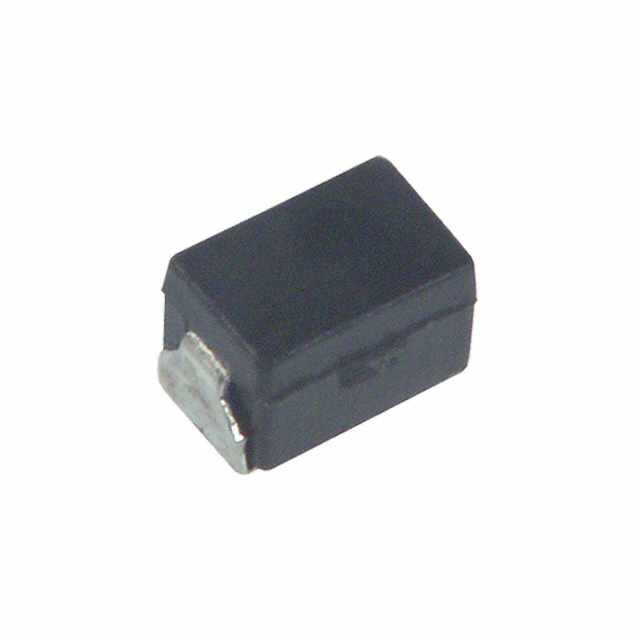

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELJ-PC120KF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELJ-PC120KF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELJ-PC120KF |
|---|---|
| Manufacturer | Panasonic |
| Description | FIXED IND 12UH 195MA 2.7 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.109 | $0.097 | $0.067 | $0.057 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELJ-PC120KF | Manufacturer | Panasonic |
|---|---|---|---|
| Description | FIXED IND 12UH 195MA 2.7 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 424163 pcs | Data sheet | ELJ-PF, PE, PC, PA, PB, LC, LA Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±10% | Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Shielding | Unshielded |
| Series | PC | Ratings | - |
| Q @ Freq | 20 @ 2.52MHz | Packaging | Cut Tape (CT) |
| Package / Case | 1008 (2520 Metric) | Other Names | ELJ-PC120KB ELJPC120KB PCD1093CT |
| Operating Temperature | -20°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 2.52MHz |
| Inductance | 12µH | Height - Seated (Max) | 0.071" (1.80mm) |
| Frequency - Self Resonant | 25MHz | Detailed Description | 12µH Unshielded Wirewound Inductor 195mA 2.7 Ohm Max 1008 (2520 Metric) |
| DC Resistance (DCR) | 2.7 Ohm Max | Current Rating | 195mA |
| Current - Saturation | - |
