ELJ-PA121KF

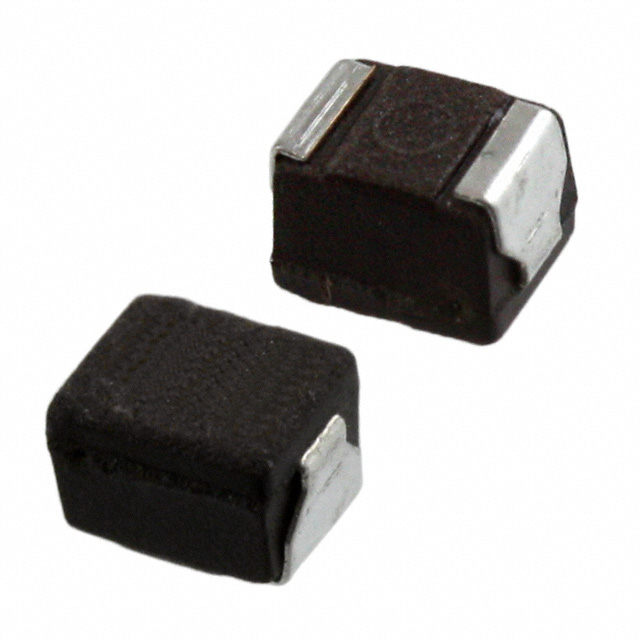

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELJ-PA121KF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELJ-PA121KF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELJ-PA121KF |
|---|---|
| Manufacturer | Panasonic |
| Description | FIXED IND 120UH 75MA 7 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELJ-PA121KF | Manufacturer | Panasonic |
|---|---|---|---|
| Description | FIXED IND 120UH 75MA 7 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4110 pcs | Data sheet | ELJ-PF, PE, PC, PA, PB, LC, LA Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±10% | Supplier Device Package | - |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | Shielding | Unshielded |
| Series | PA | Ratings | - |
| Q @ Freq | 20 @ 796kHz | Packaging | Original-Reel® |
| Package / Case | 1210 (3225 Metric) | Other Names | PCD1497DKR |
| Operating Temperature | -20°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 796kHz |
| Inductance | 120µH | Height - Seated (Max) | 0.094" (2.40mm) |
| Frequency - Self Resonant | 6MHz | Detailed Description | 120µH Unshielded Wirewound Inductor 75mA 7 Ohm Max 1210 (3225 Metric) |
| DC Resistance (DCR) | 7 Ohm Max | Current Rating | 75mA |
| Current - Saturation | - |
