ELG-TEA3R3NA

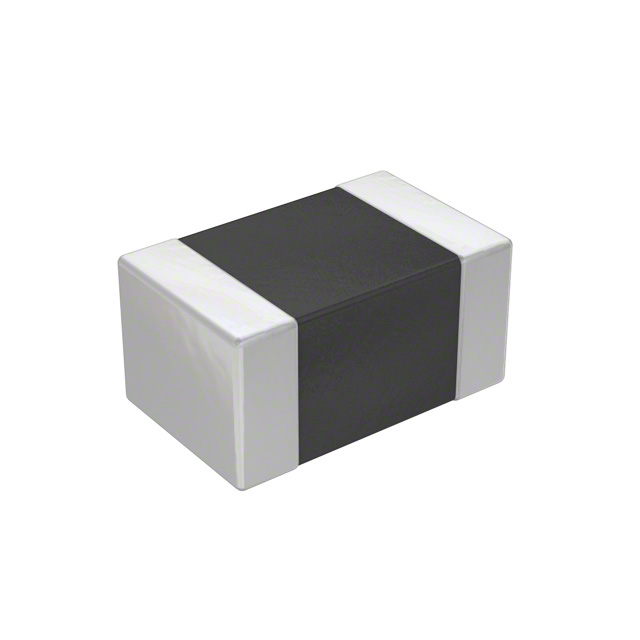

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELG-TEA3R3NA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELG-TEA3R3NA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELG-TEA3R3NA |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Description | FIXED IND 3.3UH 800MA 250 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4000 pcs | 8000 pcs | 12000 pcs | 28000 pcs | 65535 pcs |
|---|---|---|---|---|---|
| $0.042 | $0.039 | $0.038 | $0.037 | $0.034 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ELG-TEA3R3NA | Manufacturer | Panasonic Electronic Components |
|---|---|---|---|
| Description | FIXED IND 3.3UH 800MA 250 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 706289 pcs | Data sheet | ELG-TEA Series DatasheetELG-TEA Series BrochureELG-TEA, ELG-UEB Handling InstrInductors Catalog |
| Category | Inductors, Coils, Chokes | Voltage - Breakdown | 0805 (2012 Metric) |
| Usage | Shielded | Type | Multilayer |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | Series | ELGTEA |
| RoHS Status | Tape & Reel (TR) | Ratings | - |
| Polarization | 0805 (2012 Metric) | Other Names | ELGTEA3R3NA PCD2421TR |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Part Number | ELG-TEA3R3NA |
| Height - Seated (Max) | 0.039" (1.00mm) | Hardware Type | 3.3µH |
| Frequency - Test | 50MHz | Frequency - Self Resonant | 250 mOhm Max |
| Expanded Description | 3.3µH Shielded Multilayer Inductor 800mA 250 mOhm Max 0805 (2012 Metric) | ESR (Equivalent Series Resistance) | ±30% |
| Diameter - Shoulder | - | Description | FIXED IND 3.3UH 800MA 250 MOHM |
| Delay Time | 1MHz | DC Resistance (DCR) | - |
| Current Rating | 800mA | Current - Saturation | - |
