ELF-25C007F

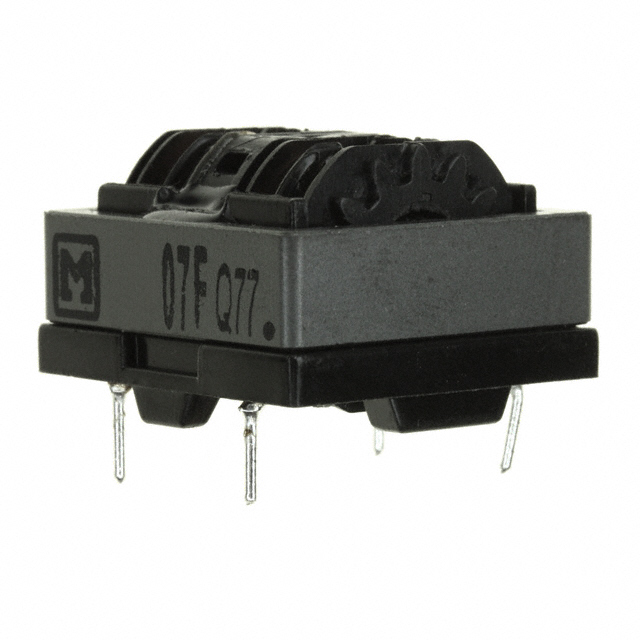

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELF-25C007F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELF-25C007F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELF-25C007F |
|---|---|
| Manufacturer | Panasonic |
| Description | COMMON MODE CHOKE 700MA 2LN TH |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.274 | $1.062 | $0.913 | $0.892 | $0.871 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ELF-25C007F | Manufacturer | Panasonic |
|---|---|---|---|
| Description | COMMON MODE CHOKE 700MA 2LN TH | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 45468 pcs | Data sheet | C Series, Type 21C/25C |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 0.984" L x 0.984" W (25.00mm x 25.00mm) |
| Series | C | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 4 PC Pin |
| Other Names | ELF25C007F PLK1314 |
Operating Temperature | -20°C ~ 115°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Height (Max) | 0.689" (17.50mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 2 Line Common Mode Choke Through Hole 700mA DCR 916 mOhm (Typ) |
| DC Resistance (DCR) (Max) | 916 mOhm (Typ) | Current Rating (Max) | 700mA |
| Approvals | - |
