ELF-23F005A

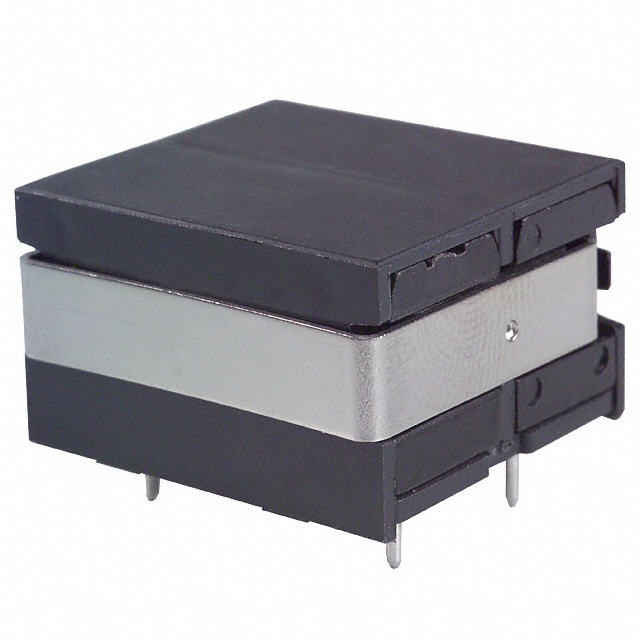

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELF-23F005A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELF-23F005A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELF-23F005A |
|---|---|
| Manufacturer | Panasonic |
| Description | COMMON MODE CHOKE 500MA 2LN TH |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $2.33 | $1.969 | $1.688 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $1.648 | $1.608 | $1.206 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELF-23F005A | Manufacturer | Panasonic |
|---|---|---|---|
| Description | COMMON MODE CHOKE 500MA 2LN TH | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 27758 pcs | Data sheet | F Series Datasheet |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 0.945" L x 0.906" W (24.00mm x 23.00mm) |
| Series | F | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 4 PC Pin |
| Other Names | ELF23F005A PLK1041 |
Operating Temperature | - |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Height (Max) | 0.551" (14.00mm) | Filter Type | - |
| Features | - | Detailed Description | 2 Line Common Mode Choke Through Hole 500mA DCR 1.219 Ohm (Typ) |
| DC Resistance (DCR) (Max) | 1.219 Ohm (Typ) | Current Rating (Max) | 500mA |
| Approvals | - |
