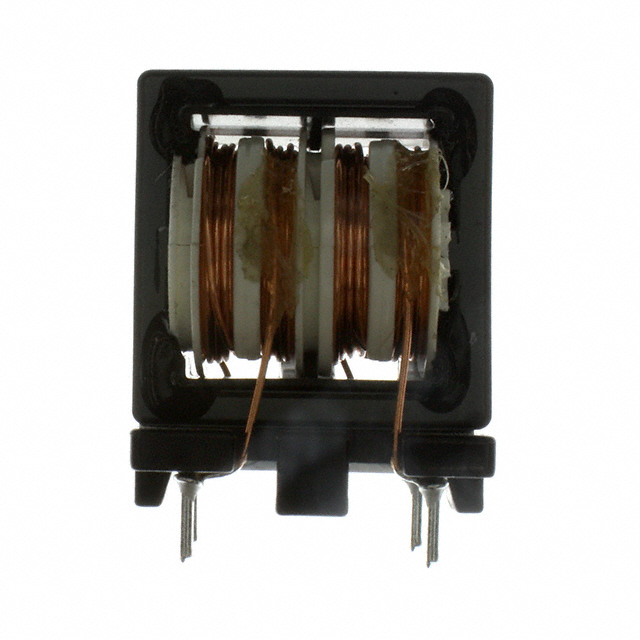

ELF-22V025C
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELF-22V025C with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELF-22V025C with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELF-22V025C |
|---|---|
| Manufacturer | Panasonic |
| Description | COMMON MODE CHOKE 2.5A 2LN TH |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.361 | $1.135 | $0.976 | $0.953 | $0.931 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ELF-22V025C | Manufacturer | Panasonic |
|---|---|---|---|
| Description | COMMON MODE CHOKE 2.5A 2LN TH | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 36092 pcs | Data sheet | ELF N,V Series |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 1.260" L x 0.906" W (32.00mm x 23.00mm) |
| Series | V | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 4 PC Pin |
| Other Names | ELF22V025C PLK1337 |
Operating Temperature | - |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Height (Max) | 1.535" (39.00mm) | Filter Type | - |
| Features | - | Detailed Description | 2 Line Common Mode Choke Through Hole 2.5A DCR 115 mOhm (Typ) |
| DC Resistance (DCR) (Max) | 115 mOhm (Typ) | Current Rating (Max) | 2.5A |
| Approvals | - |
