ELF-21C009A

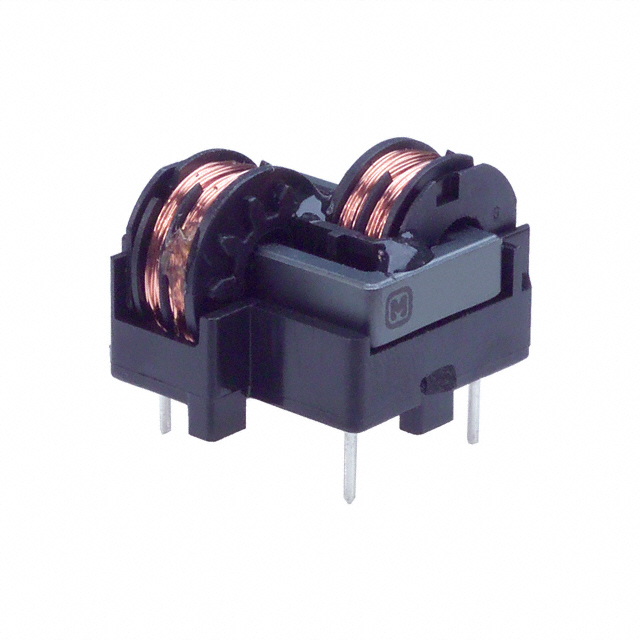

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELF-21C009A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELF-21C009A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELF-21C009A |
|---|---|
| Manufacturer | Panasonic |
| Description | COMMON MODE CHOKE 900MA 2LN TH |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELF-21C009A | Manufacturer | Panasonic |
|---|---|---|---|
| Description | COMMON MODE CHOKE 900MA 2LN TH | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4505 pcs | Data sheet | C Series, Type 21C/25C |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 0.846" L x 0.965" W (21.50mm x 24.50mm) |
| Series | C | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 4 PC Pin |
| Other Names | ELF21C009A PLK1297 |
Operating Temperature | -20°C ~ 115°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Height (Max) | 0.689" (17.50mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 2 Line Common Mode Choke Through Hole 900mA DCR 450 mOhm (Typ) |
| DC Resistance (DCR) (Max) | 450 mOhm (Typ) | Current Rating (Max) | 900mA |
| Approvals | - |
