ELF-20N010A

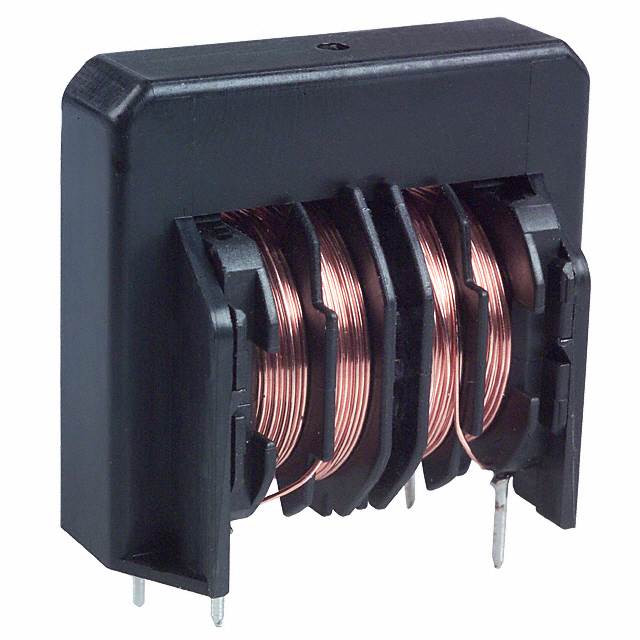

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELF-20N010A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELF-20N010A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELF-20N010A |
|---|---|
| Manufacturer | Panasonic |
| Description | COMMON MODE CHOKE 1A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELF-20N010A | Manufacturer | Panasonic |
|---|---|---|---|
| Description | COMMON MODE CHOKE 1A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4683 pcs | Data sheet | N Series, Type 15-21N |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 0.787" L x 1.260" W (20.00mm x 32.00mm) |
| Series | N | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 4 PC Pin |
| Other Names | EFL20N010A ELF-20N0010A ELF20N0010A ELF20N010A PLK1090 |
Operating Temperature | - |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height (Max) | 1.181" (30.00mm) | Filter Type | - |
| Features | - | Detailed Description | 2 Line Common Mode Choke Through Hole 1A DCR 500 mOhm (Typ) |
| DC Resistance (DCR) (Max) | 500 mOhm (Typ) | Current Rating (Max) | 1A |
| Approvals | - |
