ELF-18D216

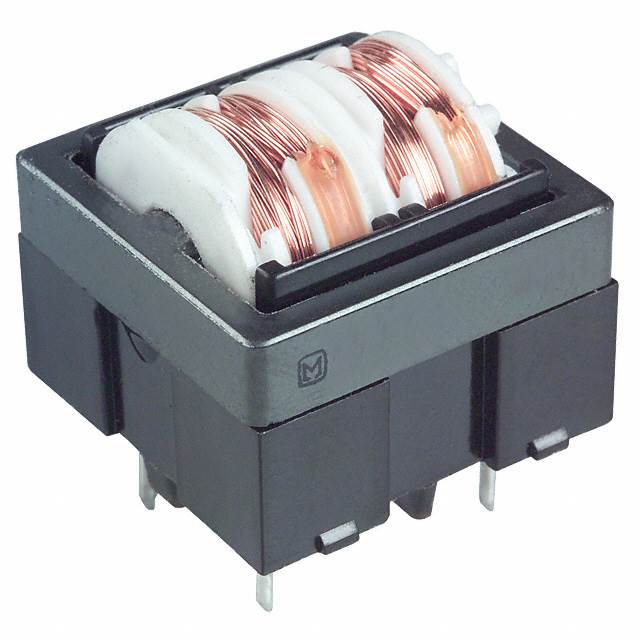

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELF-18D216 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELF-18D216 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELF-18D216 |
|---|---|
| Manufacturer | Panasonic |
| Description | CMC 3.9MH 1A 2LN TH |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELF-18D216 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CMC 3.9MH 1A 2LN TH | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4167 pcs | Data sheet | V and H SeriesELF18D2xxx Spec |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 0.787" L x 0.827" W (20.00mm x 21.00mm) |
| Series | V | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 4 PC Pin |
| Other Names | ELF18D216 PLK1020 |
Operating Temperature | -20°C ~ 105°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Inductance @ Frequency | 3.9mH @ 1kHz | Height (Max) | 0.787" (20.00mm) |
| Filter Type | - | Features | - |
| Detailed Description | 3.9mH @ 1kHz 2 Line Common Mode Choke Through Hole 1A DCR 294 mOhm (Typ) | DC Resistance (DCR) (Max) | 294 mOhm (Typ) |
| Current Rating (Max) | 1A | Approvals | - |
