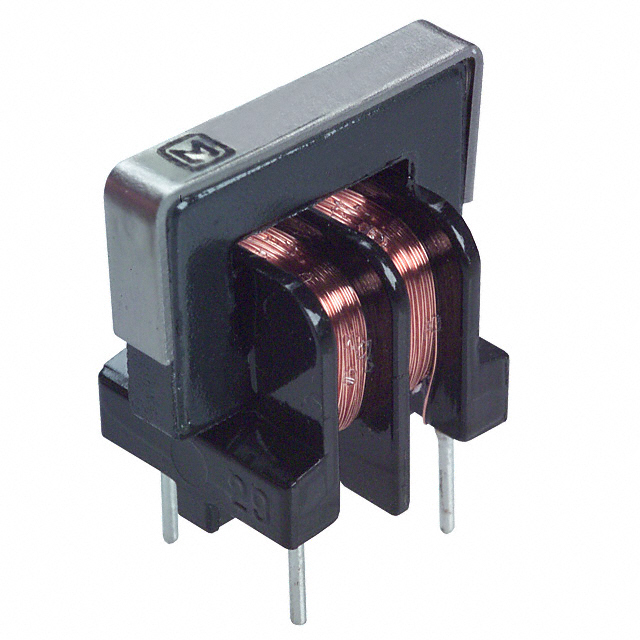

ELF-11M080E
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELF-11M080E with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELF-11M080E with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELF-11M080E |
|---|---|
| Manufacturer | Panasonic |
| Description | COMMON MODE CHOKE 800MA 2LN TH |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $0.858 | $0.829 | $0.608 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $0.594 | $0.58 | $0.525 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELF-11M080E | Manufacturer | Panasonic |
|---|---|---|---|
| Description | COMMON MODE CHOKE 800MA 2LN TH | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 63725 pcs | Data sheet | M Sieres, Type11/14/16M |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 0.630" L x 0.413" W (16.00mm x 10.50mm) |
| Series | M | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 4 PC Pin |
| Other Names | ELF11M080E PLK1143 |
Operating Temperature | - |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Height (Max) | 0.669" (17.00mm) | Filter Type | - |
| Features | - | Detailed Description | 2 Line Common Mode Choke Through Hole 800mA DCR 330 mOhm (Typ) |
| DC Resistance (DCR) (Max) | 330 mOhm (Typ) | Current Rating (Max) | 800mA |
| Approvals | - |
