ELC-3GN680M

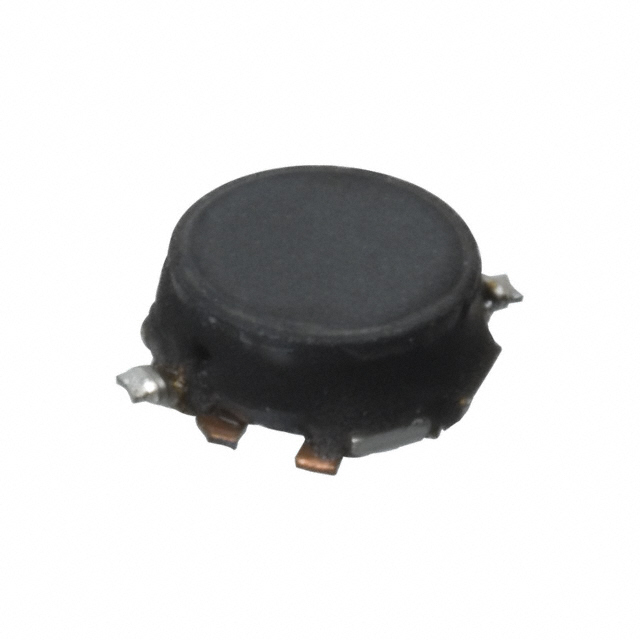

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELC-3GN680M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELC-3GN680M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELC-3GN680M |
|---|---|
| Manufacturer | Panasonic |
| Description | FIXED IND 68UH 190MA 3 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.268 | $0.234 | $0.167 | $0.141 | $0.114 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ELC-3GN680M | Manufacturer | Panasonic |
|---|---|---|---|
| Description | FIXED IND 68UH 190MA 3 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 207973 pcs | Data sheet | ELC-3GN Series |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.126" L x 0.126" W (3.20mm x 3.20mm) | Shielding | Unshielded |
| Series | N | Ratings | - |
| Q @ Freq | - | Packaging | Original-Reel® |
| Package / Case | Nonstandard | Other Names | PCD2060DKR |
| Operating Temperature | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | Material - Core | - |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 68µH |
| Height - Seated (Max) | 0.059" (1.50mm) | Frequency - Self Resonant | - |
| Detailed Description | 68µH Unshielded Inductor 190mA 3 Ohm Nonstandard | DC Resistance (DCR) | 3 Ohm |
| Current Rating | 190mA | Current - Saturation | - |
