ELC-09D8R2DF

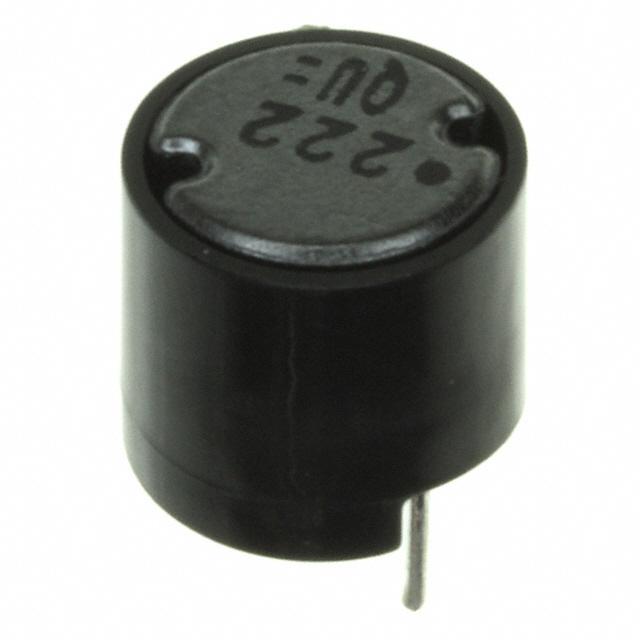

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELC-09D8R2DF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELC-09D8R2DF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELC-09D8R2DF |
|---|---|
| Manufacturer | Panasonic |
| Description | FIXED IND 8.2UH 2.6A 24 MOHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | ||||
|---|---|---|---|---|---|
| $0.099 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELC-09D8R2DF | Manufacturer | Panasonic |
|---|---|---|---|
| Description | FIXED IND 8.2UH 2.6A 24 MOHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 211118 pcs | Data sheet | ELC Choke Coils |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.374" Dia (9.50mm) | Shielding | Unshielded |
| Series | 09D | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Radial | Other Names | ELC09D8R2DF |
| Operating Temperature | - | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | Material - Core | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 10kHz | Inductance | 8.2µH |
| Height - Seated (Max) | 0.350" (8.90mm) | Frequency - Self Resonant | - |
| Detailed Description | 8.2µH Unshielded Wirewound Inductor 2.6A 24 mOhm Radial | DC Resistance (DCR) | 24 mOhm |
| Current Rating | 2.6A | Current - Saturation | - |
