Home > Products > RF/IF and RFID > RF Directional Coupler > EHF-FD1728

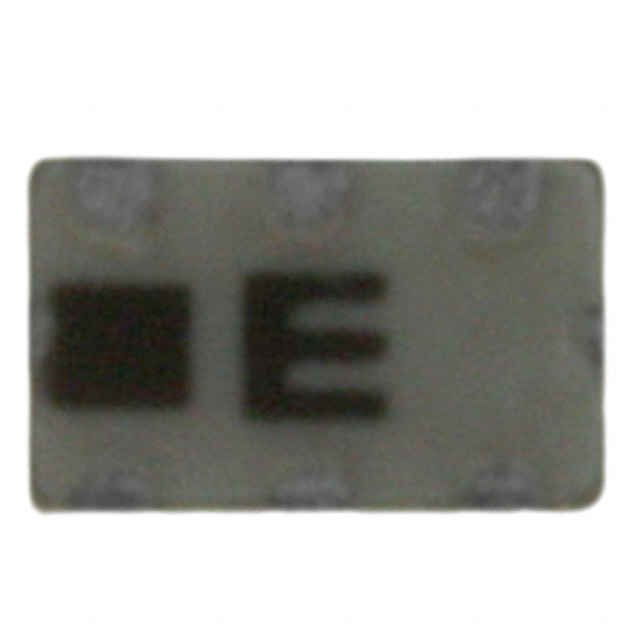

EHF-FD1728

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EHF-FD1728 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	EHF-FD1728
Manufacturer	Panasonic
Description	RF DIR COUPLER 880-915MHZ 0805
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5903 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	EHF-FD1728	Manufacturer	Panasonic
Description	RF DIR COUPLER 880-915MHZ 0805	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5903 pcs	Data sheet	EHF Coupler with Filter
Category	RF/IF and RFID	Supplier Device Package	0805 (2012 Metric)
Series	-	Return Loss	-
Power - Max	-	Packaging	Tape & Reel (TR)
Package / Case	0805 (2012 Metric)	Other Names	EHFFD1728 P12051TR
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Isolation	28dB	Insertion Loss	0.45dB
Frequency	880MHz ~ 915MHz	Detailed Description	RF Directional Coupler Cellular 880MHz ~ 915MHz 20 ± 1dB 0805 (2012 Metric)
Coupling Factor	20 ± 1dB	Coupler Type	Coupler, With Filter
Applications	Cellular
