EEV-HD1V100R

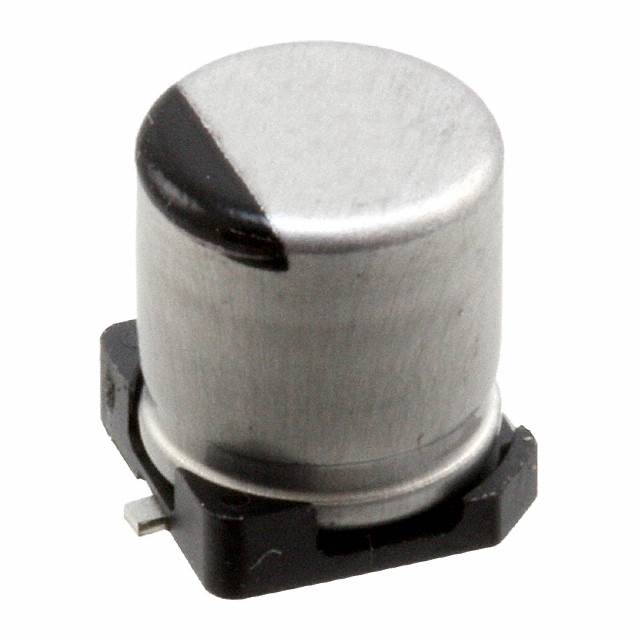

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EEV-HD1V100R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EEV-HD1V100R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EEV-HD1V100R |
|---|---|
| Manufacturer | Panasonic |
| Description | CAP ALUM 10UF 20% 35V SMD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | EEV-HD1V100R | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CAP ALUM 10UF 20% 35V SMD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4204 pcs | Data sheet | HD Series, Type V |
| Category | Capacitors | Voltage - Rated | 35V |
| Tolerance | ±20% | Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Size / Dimension | 0.197" Dia (5.00mm) | Series | HD-V |
| Ripple Current @ Low Frequency | 28mA @ 120Hz | Ripple Current @ High Frequency | 47.6mA @ 10kHz |
| Ratings | - | Polarization | Polar |
| Packaging | Cut Tape (CT) | Package / Case | Radial, Can - SMD |
| Other Names | PCE3343CT | Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | Lead Spacing | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Impedance | 7.2 Ohms |
| Height - Seated (Max) | 0.228" (5.80mm) | ESR (Equivalent Series Resistance) | - |
| Detailed Description | 10µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C | Capacitance | 10µF |
| Applications | General Purpose |
