EEU-ED2D101

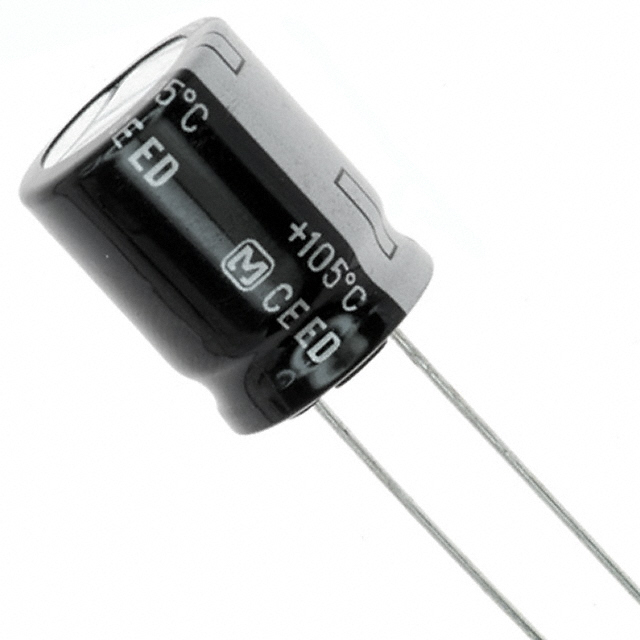

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EEU-ED2D101 with confidence from Components-World.HK, 1 Year Warranty
Dowload EEU-ED2D101 Details in PDFSee Product Specifications for product details.
Buy EEU-ED2D101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EEU-ED2D101 |
|---|---|
| Manufacturer | Panasonic |
| Description | CAP ALUM 100UF 20% 200V RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.549 | $0.434 | $0.325 | $0.246 | ||
| 1000 pcs | 2500 pcs | 5000 pcs | |||
| $0.217 | $0.202 | $0.195 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EEU-ED2D101 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CAP ALUM 100UF 20% 200V RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 123920 pcs | Data sheet | ED Series, Type A |
| Category | Capacitors | Voltage - Rated | 200V |
| Tolerance | ±20% | Surface Mount Land Size | - |
| Size / Dimension | 0.630" Dia (16.00mm) | Series | ED |
| Ripple Current @ Low Frequency | 585mA @ 120Hz | Ripple Current @ High Frequency | 1.3A @ 100kHz |
| Ratings | - | Polarization | Polar |
| Packaging | Bulk | Package / Case | Radial, Can |
| Other Names | EEUED2D101 P13518 |
Operating Temperature | -25°C ~ 105°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 15 Weeks | Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Lead Spacing | 0.295" (7.50mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.984" (25.00mm) | ESR (Equivalent Series Resistance) | - |
| Detailed Description | 100µF 200V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C | Capacitance | 100µF |
| Applications | General Purpose |
