EEF-CS1E100R

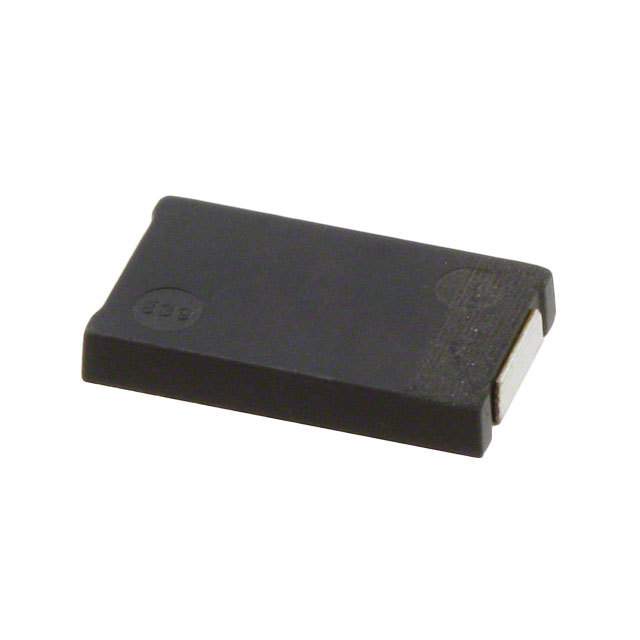

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EEF-CS1E100R with confidence from Components-World.HK, 1 Year Warranty
Dowload EEF-CS1E100R Details in PDFSee Product Specifications for product details.
Buy EEF-CS1E100R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EEF-CS1E100R |
|---|---|
| Manufacturer | Panasonic |
| Description | CAP ALUM POLY 10UF 20% 25V SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3500 pcs | 7000 pcs | 10500 pcs | 17500 pcs | |
|---|---|---|---|---|---|
| $0.222 | $0.214 | $0.206 | $0.205 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | EEF-CS1E100R | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CAP ALUM POLY 10UF 20% 25V SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 92749 pcs | Data sheet | CS, CT, CX Series Datasheet |
| Category | Capacitors | Voltage - Rated | 25V |
| Type | Polymer | Tolerance | ±20% |
| Surface Mount Land Size | - | Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Series | SP-Cap CS | Ripple Current @ High Frequency | 3.2A @ 100kHz |
| Ratings | - | Packaging | Tape & Reel (TR) |
| Package / Case | 2917 (7343 Metric) | Other Names | EEFCS1E100R P16804-2 |
| Operating Temperature | -55°C ~ 105°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 15 Weeks |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | Lead Spacing | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.047" (1.20mm) |
| ESR (Equivalent Series Resistance) | 40 mOhm | Detailed Description | 10µF 25V Aluminum Polymer Capacitor 2917 (7343 Metric) 40 mOhm 2000 Hrs @ 105°C |
| Capacitance | 10µF | Applications | General Purpose |
