EEE-HB1C220R

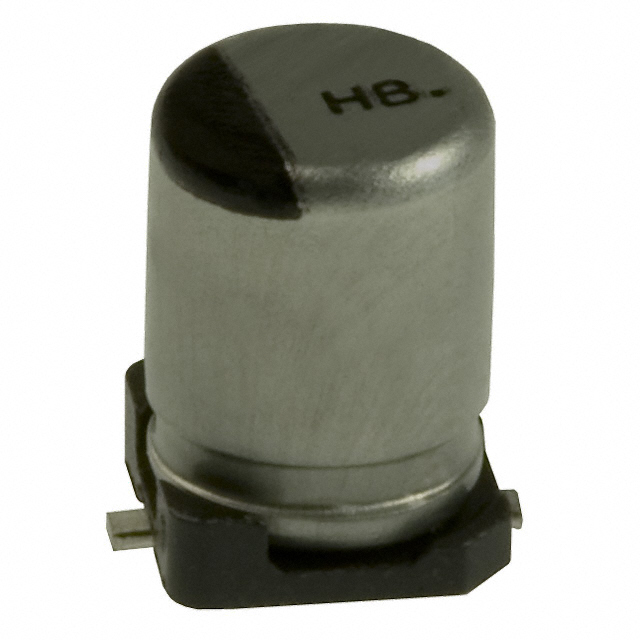

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EEE-HB1C220R with confidence from Components-World.HK, 1 Year Warranty
Dowload EEE-HB1C220R Details in PDFSee Product Specifications for product details.
Buy EEE-HB1C220R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EEE-HB1C220R |
|---|---|
| Manufacturer | Panasonic |
| Description | CAP ALUM 22UF 20% 16V SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 5000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.03 | $0.029 | $0.027 | $0.025 | ||
| 25000 pcs | 50000 pcs | 100000 pcs | |||
| $0.024 | $0.022 | $0.021 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EEE-HB1C220R | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CAP ALUM 22UF 20% 16V SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1113819 pcs | Data sheet | Aluminum Elect Caps, Part Number SystemEEE-HB (HP) Series, Type V |
| Category | Capacitors | Voltage - Rated | 16V |
| Tolerance | ±20% | Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Size / Dimension | 0.197" Dia (5.00mm) | Series | HB |
| Ripple Current @ Low Frequency | 39mA @ 120Hz | Ripple Current @ High Frequency | 66.3mA @ 10kHz |
| Ratings | AEC-Q200 | Polarization | Polar |
| Packaging | Tape & Reel (TR) | Package / Case | Radial, Can - SMD |
| Other Names | EEEHB1C220R PCE4138TR |
Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 19 Weeks | Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Lead Spacing | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.228" (5.80mm) | ESR (Equivalent Series Resistance) | - |
| Detailed Description | 22µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C | Capacitance | 22µF |
| Applications | Automotive |
