ECW-HC3F822JQ

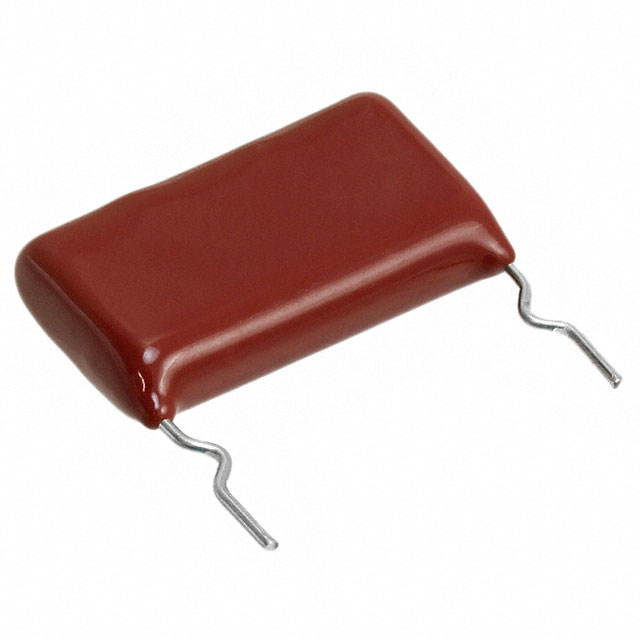

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECW-HC3F822JQ with confidence from Components-World.HK, 1 Year Warranty
Dowload ECW-HC3F822JQ Details in PDFSee Product Specifications for product details.
Buy ECW-HC3F822JQ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ECW-HC3F822JQ |
|---|---|
| Manufacturer | Panasonic |
| Description | CAP FILM 8200PF 5% 3KVDC RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.434 | $0.342 | $0.256 | $0.194 | ||
| 1000 pcs | 2500 pcs | 5000 pcs | |||
| $0.171 | $0.159 | $0.154 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ECW-HC3F822JQ | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CAP FILM 8200PF 5% 3KVDC RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 130224 pcs | Data sheet | ECWH(C) Series DatasheetECW-HC3F822JQ View All Specifications |
| Category | Capacitors | Voltage Rating - DC | 3000V (3kV) |
| Voltage Rating - AC | - | Tolerance | ±5% |
| Termination | PC Pins | Size / Dimension | 1.016" L x 0.295" W (25.80mm x 7.50mm) |
| Series | ECW-H(C) | Ratings | - |
| Packaging | Bulk | Package / Case | Radial |
| Other Names | ECWHC3F822JQ P16756 |
Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Spacing | 0.886" (22.50mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.878" (22.30mm) |
| Features | - | Dielectric Material | Polypropylene (PP), Metallized |
| Detailed Description | 8200pF Film Capacitor 3000V (3kV) Polypropylene (PP), Metallized Radial | Capacitance | 8200pF |
| Applications | General Purpose |
