ECW-H8223HA

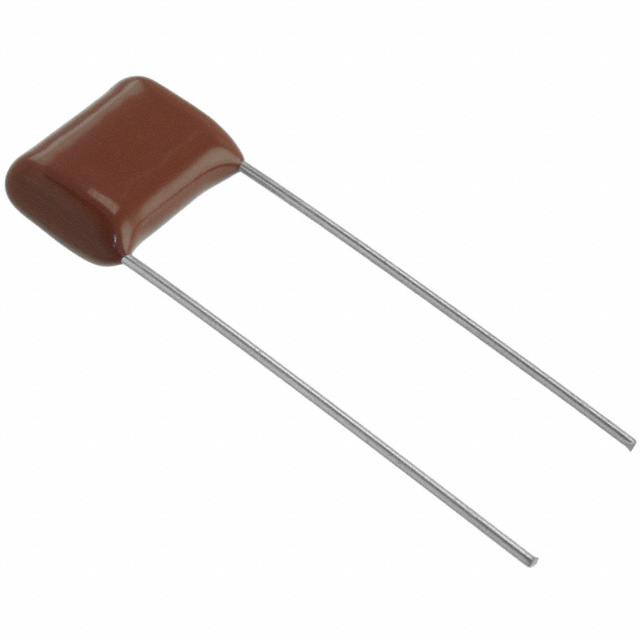

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECW-H8223HA with confidence from Components-World.HK, 1 Year Warranty
Dowload ECW-H8223HA Details in PDFSee Product Specifications for product details.
Buy ECW-H8223HA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ECW-H8223HA |
|---|---|
| Manufacturer | Panasonic |
| Description | CAP FILM 0.022UF 3% 800VDC RAD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.311 | $0.236 | $0.169 | $0.131 | ||
| 1000 pcs | 2500 pcs | 5000 pcs | |||
| $0.113 | $0.105 | $0.10 | |||
- Product parameter
Product parameter
| Part Number | ECW-H8223HA | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CAP FILM 0.022UF 3% 800VDC RAD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 240113 pcs | Data sheet | |
| Category | Capacitors | Voltage Rating - DC | 800V |
| Voltage Rating - AC | - | Tolerance | ±3% |
| Termination | PC Pins | Size / Dimension | 0.618" L x 0.280" W (15.70mm x 7.10mm) |
| Series | ECW-H(A) | Ratings | - |
| Packaging | Bulk | Package / Case | Radial |
| Other Names | ECWH8223HA P14259 |
Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Spacing | 0.492" (12.50mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.512" (13.00mm) |
| Features | - | Dielectric Material | Polypropylene (PP), Metallized |
| Detailed Description | 0.022µF Film Capacitor 800V Polypropylene (PP), Metallized Radial | Capacitance | 0.022µF |
| Applications | High Frequency, Switching |
