ECW-FD2J564J

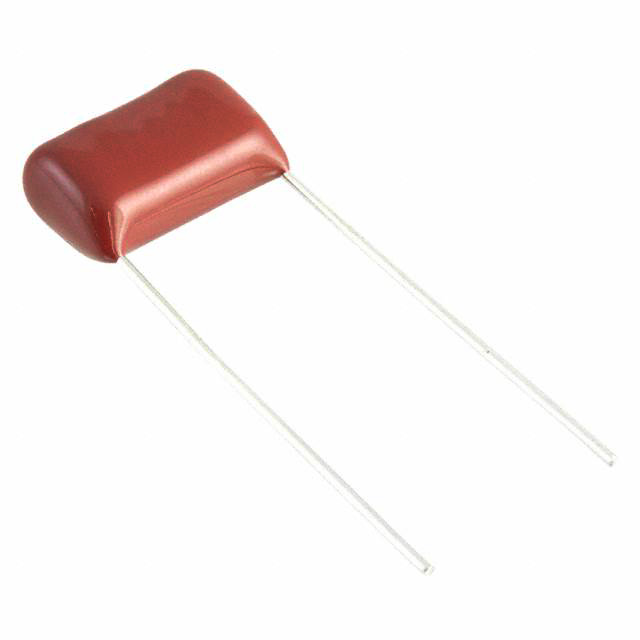

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECW-FD2J564J with confidence from Components-World.HK, 1 Year Warranty
Dowload ECW-FD2J564J Details in PDFSee Product Specifications for product details.
Buy ECW-FD2J564J with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ECW-FD2J564J |
|---|---|
| Manufacturer | Panasonic |
| Description | METALLIZED POLYPROPYLENE FILM CA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.316 | $0.239 | $0.171 | $0.133 | ||
| 1000 pcs | 2500 pcs | 5000 pcs | |||
| $0.114 | $0.107 | $0.101 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ECW-FD2J564J | Manufacturer | Panasonic |
|---|---|---|---|
| Description | METALLIZED POLYPROPYLENE FILM CA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 214652 pcs | Data sheet | ECW-FD Series DatasheetECW-FD Series Product InfoPlastic Film Capacitor Catalog |
| Category | Capacitors | Voltage Rating - DC | 630V |
| Voltage Rating - AC | - | Tolerance | ±5% |
| Termination | PC Pins | Size / Dimension | 0.701" L x 0.331" W (17.80mm x 8.40mm) |
| Series | ECW-F(D) | Ratings | - |
| Package / Case | Radial | Other Names | ECWFD2J564J P122564 |
| Operating Temperature | -40°C ~ 105°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Spacing | 0.591" (15.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.583" (14.80mm) | Features | - |
| Dielectric Material | Polypropylene (PP), Metallized | Detailed Description | 0.56µF Film Capacitor 630V Polypropylene (PP), Metallized Radial |
| Capacitance | 0.56µF | Applications | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT |
