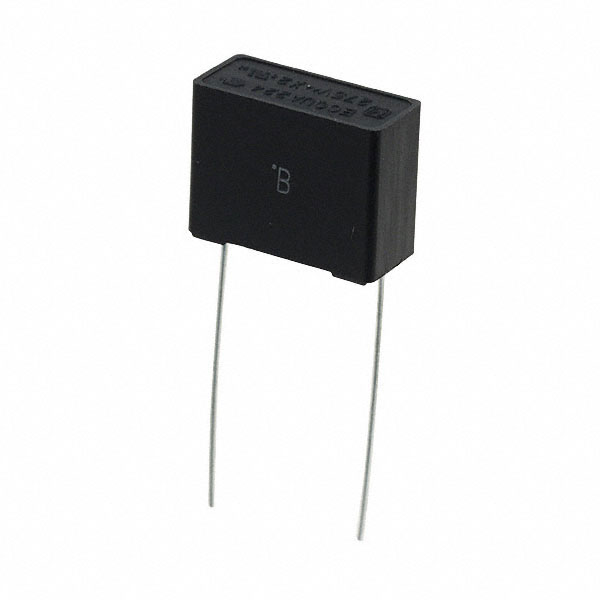

ECQ-UAAF224M
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECQ-UAAF224M with confidence from Components-World.HK, 1 Year Warranty
Dowload ECQ-UAAF224M Details in PDFSee Product Specifications for product details.
Buy ECQ-UAAF224M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ECQ-UAAF224M |
|---|---|
| Manufacturer | Panasonic |
| Description | CAP FILM 0.22UF 20% 275VAC RAD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.243 | $0.173 | $0.114 | $0.084 | ||
| 1000 pcs | 2500 pcs | 5000 pcs | |||
| $0.072 | $0.067 | $0.063 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ECQ-UAAF224M | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CAP FILM 0.22UF 20% 275VAC RAD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 363968 pcs | Data sheet | ECQ-UAAF224M View All SpecificationsCapacitors Product SummaryECQ-UA Series DatasheetECQ-UA Series, Safety CertificateCapacitor Safety Precaution GuidePlastic Film Capacitor Catalog |
| Category | Capacitors | Voltage Rating - DC | - |
| Voltage Rating - AC | 275V | Tolerance | ±20% |
| Termination | PC Pins | Size / Dimension | 0.689" L x 0.295" W (17.50mm x 7.50mm) |
| Series | ECQ-UA | Ratings | X2 |
| Packaging | Bulk | Package / Case | Radial |
| Other Names | ECQUAAF224M P14781 |
Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Spacing | 0.591" (15.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.571" (14.50mm) |
| Features | - | Dielectric Material | Polypropylene (PP), Metallized |
| Detailed Description | 0.22µF Film Capacitor 275V Polypropylene (PP), Metallized Radial | Capacitance | 0.22µF |
| Applications | EMI, RFI Suppression |
