ECQ-U2A564MV

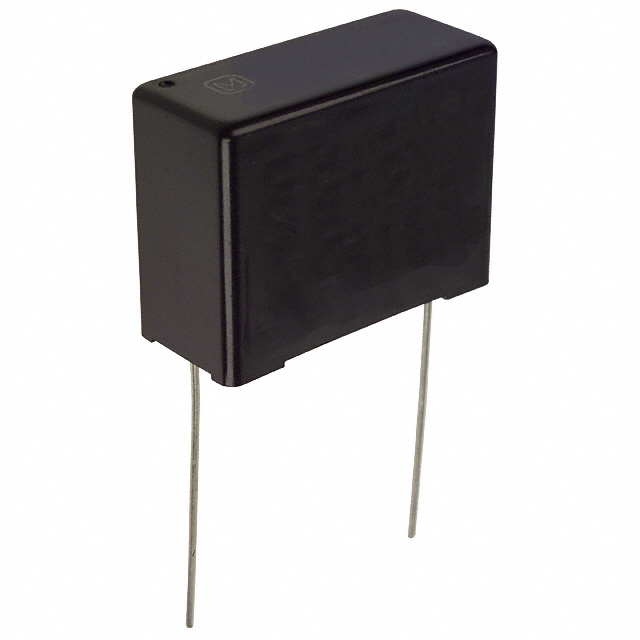

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECQ-U2A564MV with confidence from Components-World.HK, 1 Year Warranty
Dowload ECQ-U2A564MV Details in PDFSee Product Specifications for product details.
Buy ECQ-U2A564MV with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ECQ-U2A564MV |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Description | CAP FILM 0.56UF 20% 250VAC RAD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.683 | $0.552 | $0.502 | $0.482 | $0.422 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ECQ-U2A564MV | Manufacturer | Panasonic Electronic Components |
|---|---|---|---|
| Description | CAP FILM 0.56UF 20% 250VAC RAD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 70905 pcs | Data sheet | ECQ-UV Series |
| Category | Capacitors | Voltage Rating - DC | 250V |
| Tolerance | 0.56µF | Termination | PC Pins |
| Surface Mount Land Size | 1.083" (27.50mm) | Size / Dimension | 1.201" L x 0.532" W (30.50mm x 13.50mm) |
| Series | ECQ-UV | RoHS Status | Bulk |
| Ripple Current - Low Frequency | EMI, RFI Suppression | Polarization | Radial |
| Other Names | ECQU2A564MV P4645 |
Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Part Number | ECQ-U2A564MV | Lifetime @ Temp. | - |
| Height - Seated (Max) | 0.945" (24.00mm) | Features | X2 Safety Rated |
| Expanded Description | 0.56µF ±20% Film Capacitor 250V Polyester, Metallized Radial | ESR (Equivalent Series Resistance) | ±20% |
| Dielectric Diameter | Polyester, Metallized | Description | CAP FILM 0.56UF 20% 250VAC RAD |
| Current - Leakage | - |
